Introducing our latest creation - MG-X Adjustable Rock Sliders for the JB74 3 Door Jimny!
These rock sliders have features that aren't like anything else on the market:
Horizontal Adjustability - Adjust your rock sliders for the clearance you're after with 60mm of in/out adjustability.
Want them tucked more in? Simply unbolt them and re-bolt them on in the inwards position. Want more of a step to get things on/off your roof? Unbolt and put them in their most outward setting. The choice is yours!
In the most inwards position, the plastic sill panel of your Jimny will need to be removed - this will give you the most sideways clearance. In this position, the edge of the rock slider sits in roughly the same position as the edge of the plastic sill panel when it's still on the car.

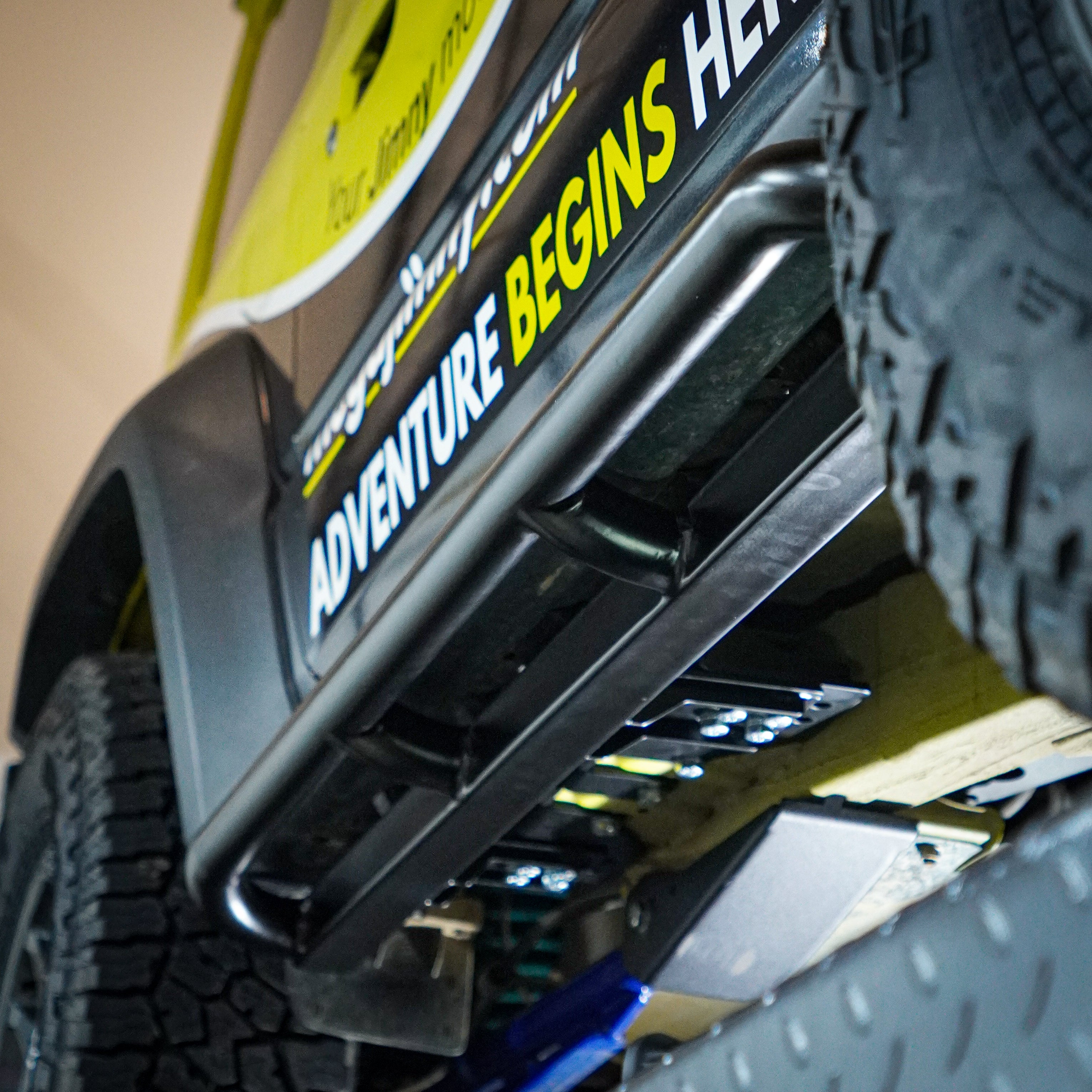

Ultra High Clearance: Our rock sliders give clearance like no other off-the-shelf Jimny rock slider on the market. By utilising curved inner CNC bent & notched tubing, we can position the rock slider body only millimetres away from the plastic sill panel, making fitment super tight and super high!
Three piece design - If you've fitted rock sliders before, you'd know that they can be really heavy, bulky and awkward to install, especially lining up all the brackets and bolting it all together at the right angles.
Our 3 piece design means that fitting these rock sliders becomes significantly easier overall when using our multi-piece setup.
Modular Design - Had enough of 4wd'ing for a while and want to save some weight during everyday driving? Simply unbolt the rock slider and the mounting brackets will stay in place on your Jimny, saving you nearly 27kg of weight for day to day use. These brackets will also be used for additional 'add-on' parts that we're currently developing.
Bolt on/Bolt off slider design - Our rock sliders use 12 x M12 bolts to secure the sliders to their brackets. On the back side of the mounting brackets are M12 nuts that have been welded on to every rear bolt hole to make installation and removal of steps hassle free.
Built to be tough - All of our bracketry is made from 10mm thick steel and uses M10 fasteners throughout and both rock sliders & mounting brackets are powder coated black for extra durability.
If you'd like even more information about these rock sliders, view our blog post here.
Info & Specs:
- These rocker sliders will fit the JB74 3 Door Jimny only.
- All bolts and washers are included, along with instructions.
- Removable Rock slider weight is 13.4kg per side (26.8kg saving for both sides).
- Total fitted weight with all brackets, sliders and fasteners - 34.5kg in total (Approx 17.2kg per side).
- Fitment time is approx. 2-3 hours.
- Additional tools are required for installation - Drill, 4mm + 10mm Drill bit, Spray paint to coat drilled locations (enlarging 4 existing holes, and drilling two new holes in total), eye protection & a socket set.
- Using the rock slider in the outmost position uses only 6 x M12 bolts instead of all 12, although they'll still be very strong, we recommend any 'brutal' 4wding should be done on the middle or inner most setting.
- Due to the size and weight - We recommend delivery to a business address.
