TLR Under Seat Bracket + ARB Dual Compressor kit
Will this fit my Jimny?
This product fits both JB74 3 door & JC74 5 door Jimny's.
Couldn't load pickup availability
TLR Products Air Compressor Bracket and ARB Twin Air compressor kit to suit a Suzuki Jimny JB74W Under Seat
This Complete Installation Kit provides all the components required for an operational ARB Twin Air Compressor under the seat of the Suzuki Jimny JB74W.

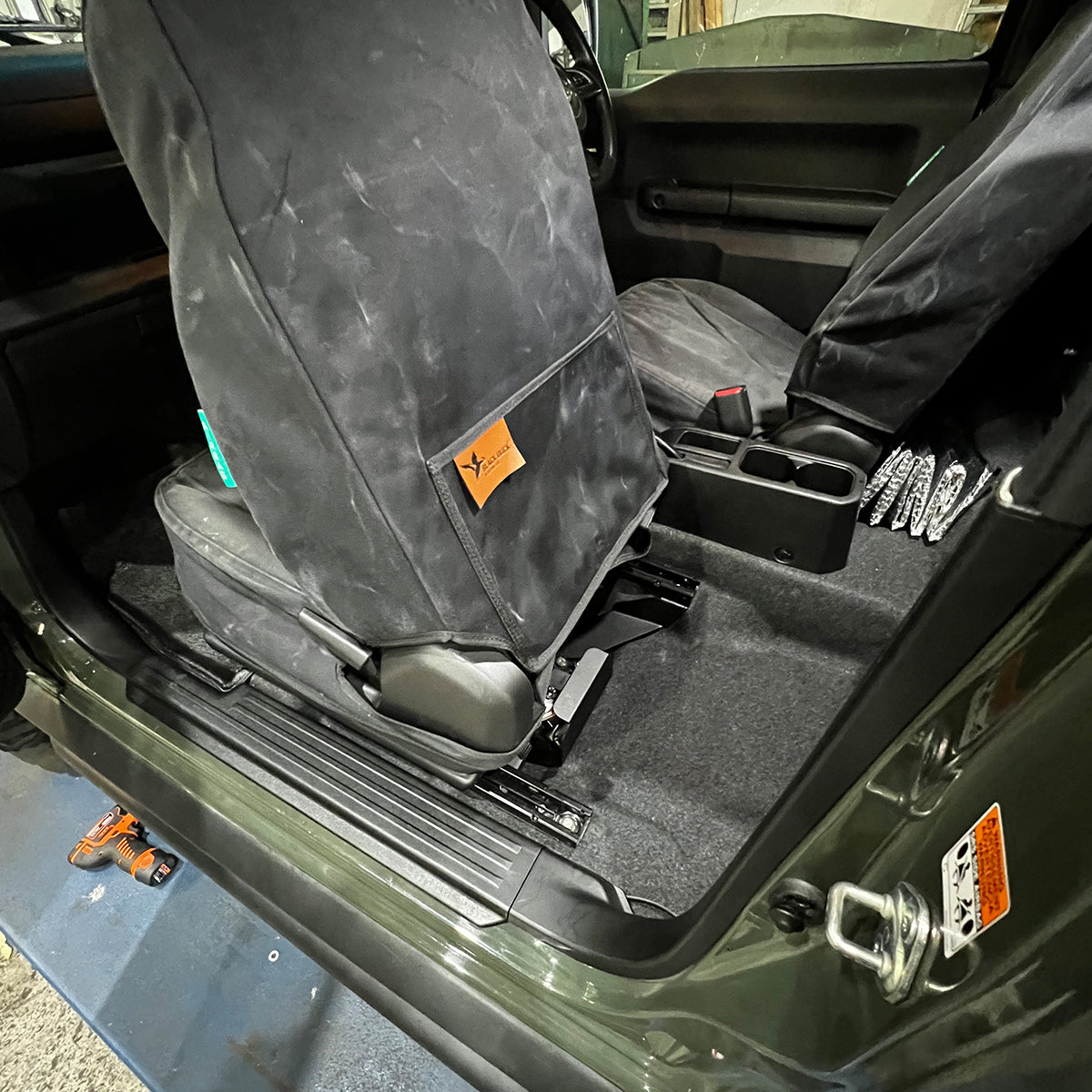

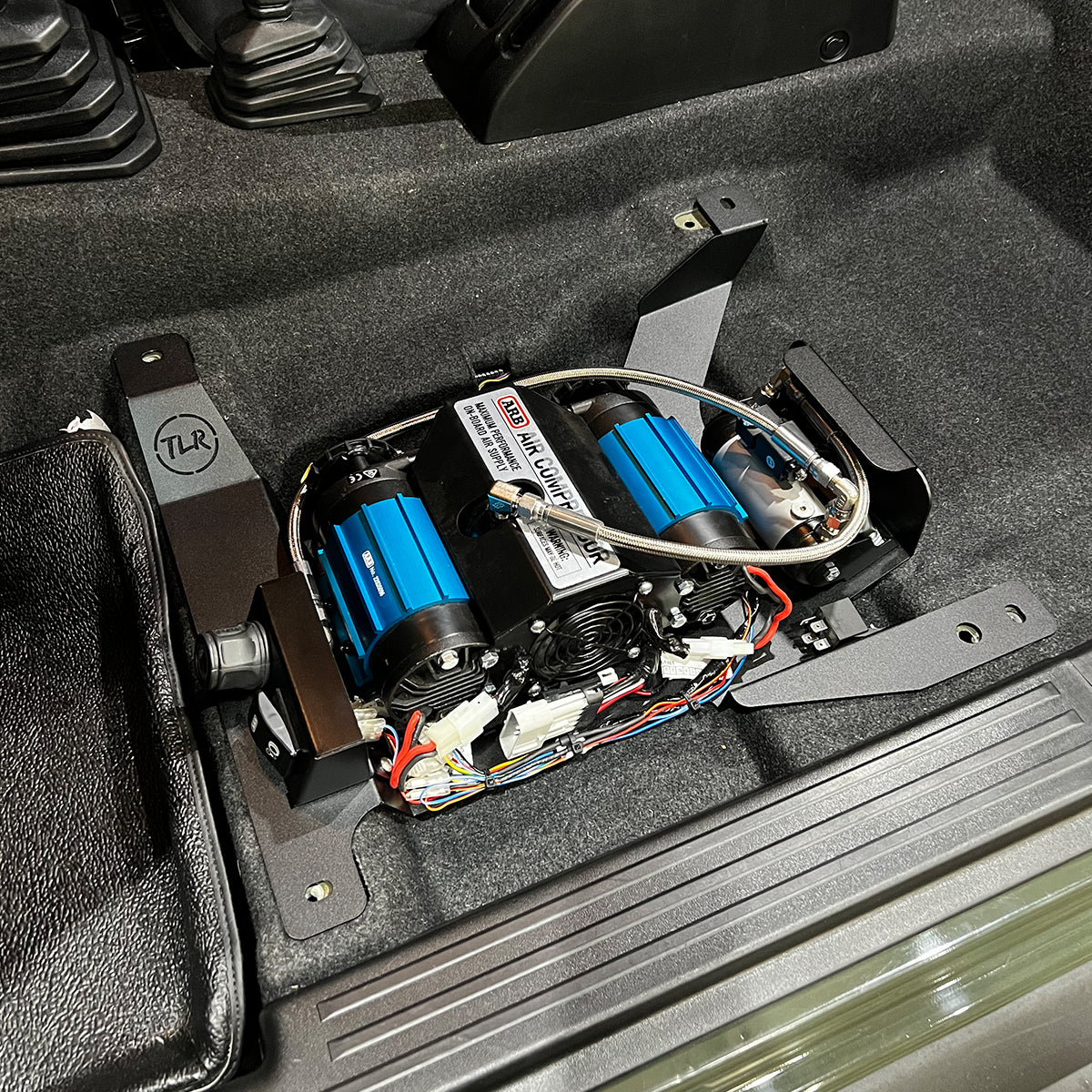

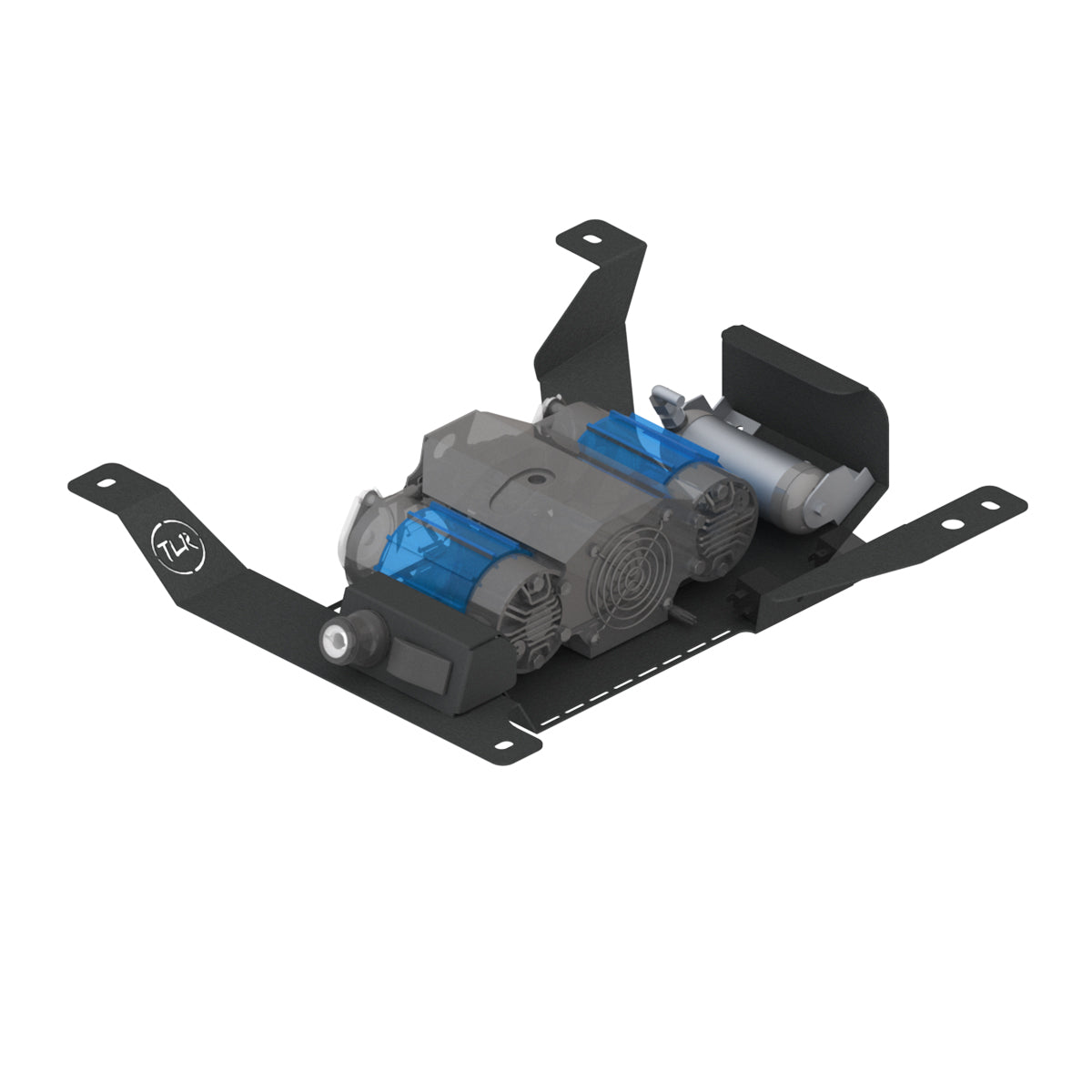

The TLR Products Air Compressor Bracket is design to mount the ARB Twin Air Compressor (CKMTA12) in the unused cavity located under the passenger side front seat, this location provides to opportunity to mount the large compressor in the Jimny without using any of the valuable cargo space.

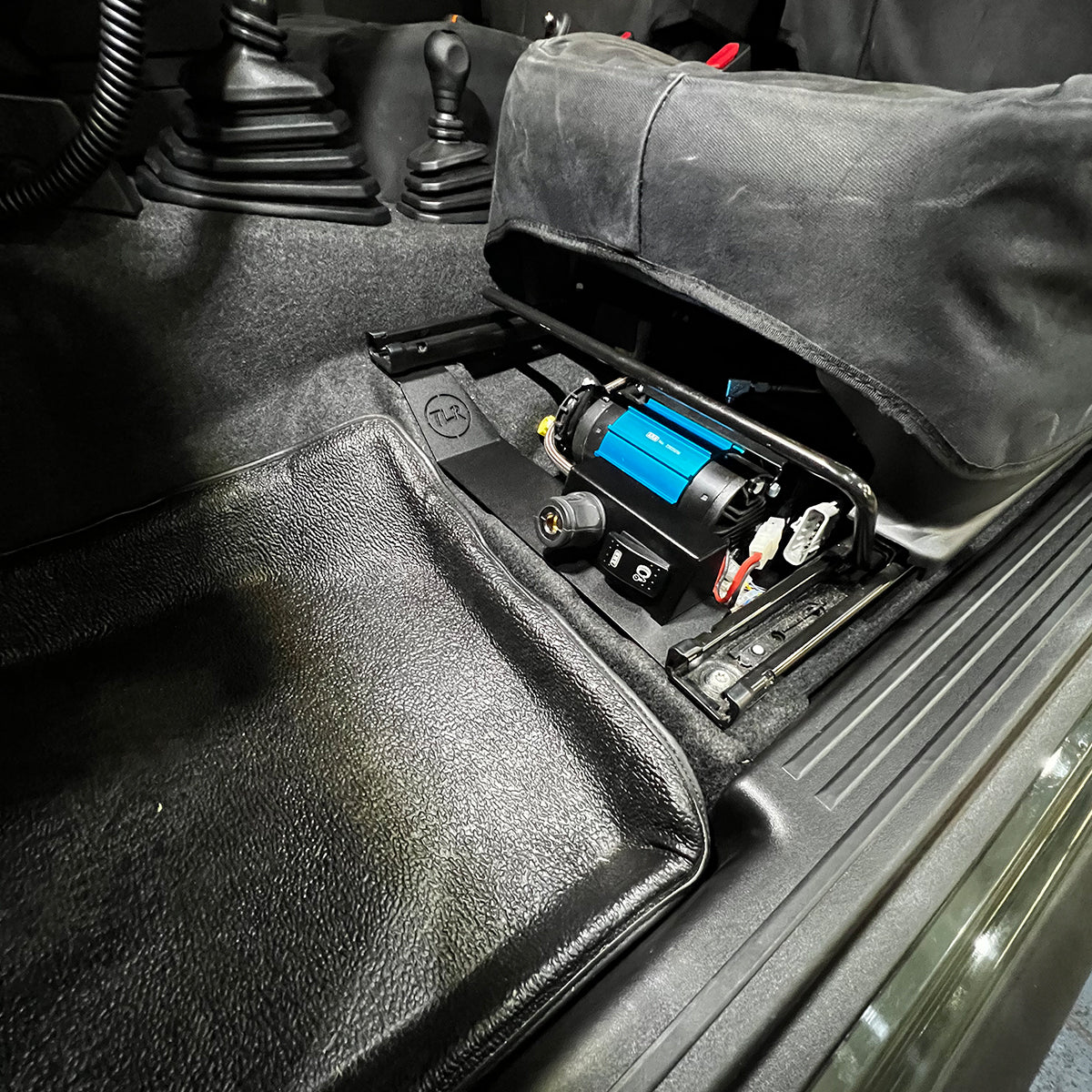

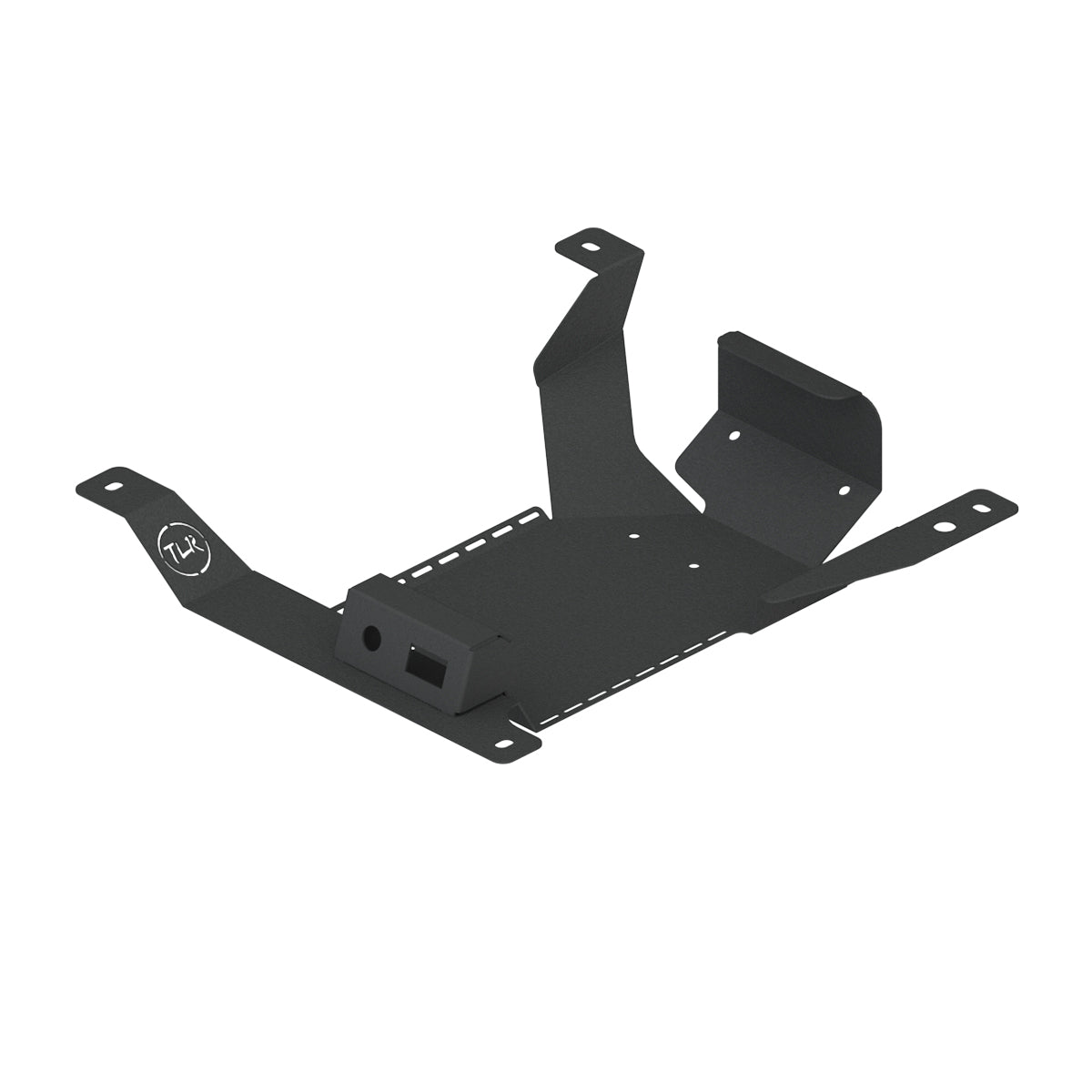

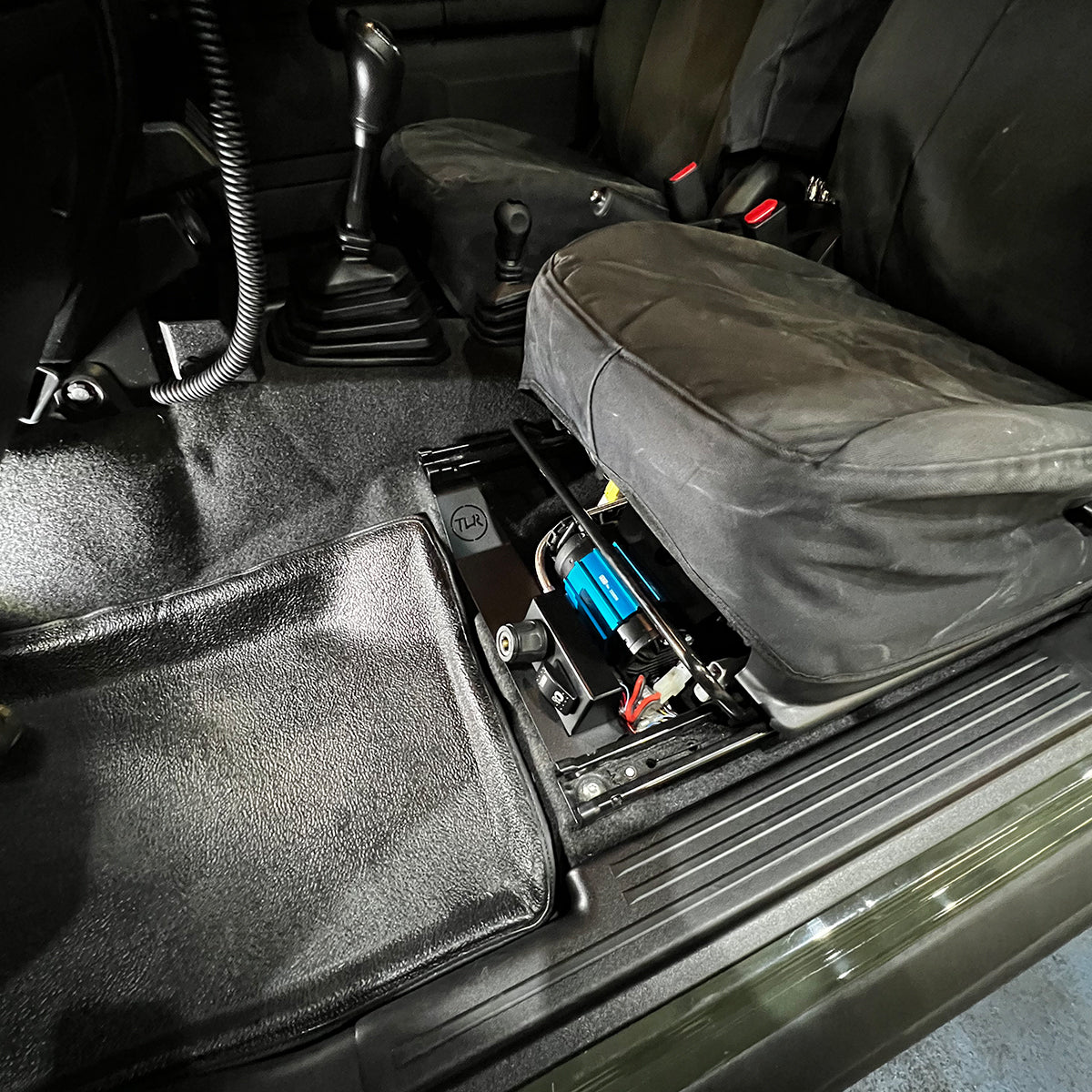

The Bracket set comes with a bolt on bracket to house the electrical toggle switch and ARB air coupling, this small bracket mounts to the front of the main bracket and locates the switch and coupling in the front footwell to provides easy access and use of the compressor.
There are also holes provided for mounting the additional ARB air manifold on the rear section of the main bracket, all components are protected by the small kick panel manufactured on the rear of the bracket.
NOTE: This Complete kit includes the TLR Products Mounting bracket set, all hardware required for fitment, ARB Twin Air Compressor and hoses, fittings required for operation.
THIS KIT DOES NOT INCLUDE THE ARB AIR MANIFOLD – This is sold separately.
Features:
- Switch and Air Coupling mounting bracket
- suits ARB Twin Air compressor (CKMTA12) and ARB Manifold tank
- Space saving design mounts under the passenger seat of the vehicle
- Laser cut from zinc coated 2 mm steel.
- Powder coated in a black textured finish for added corrosion resistance and aesthetics.
- Use of pre-existing holes. No drilling required.

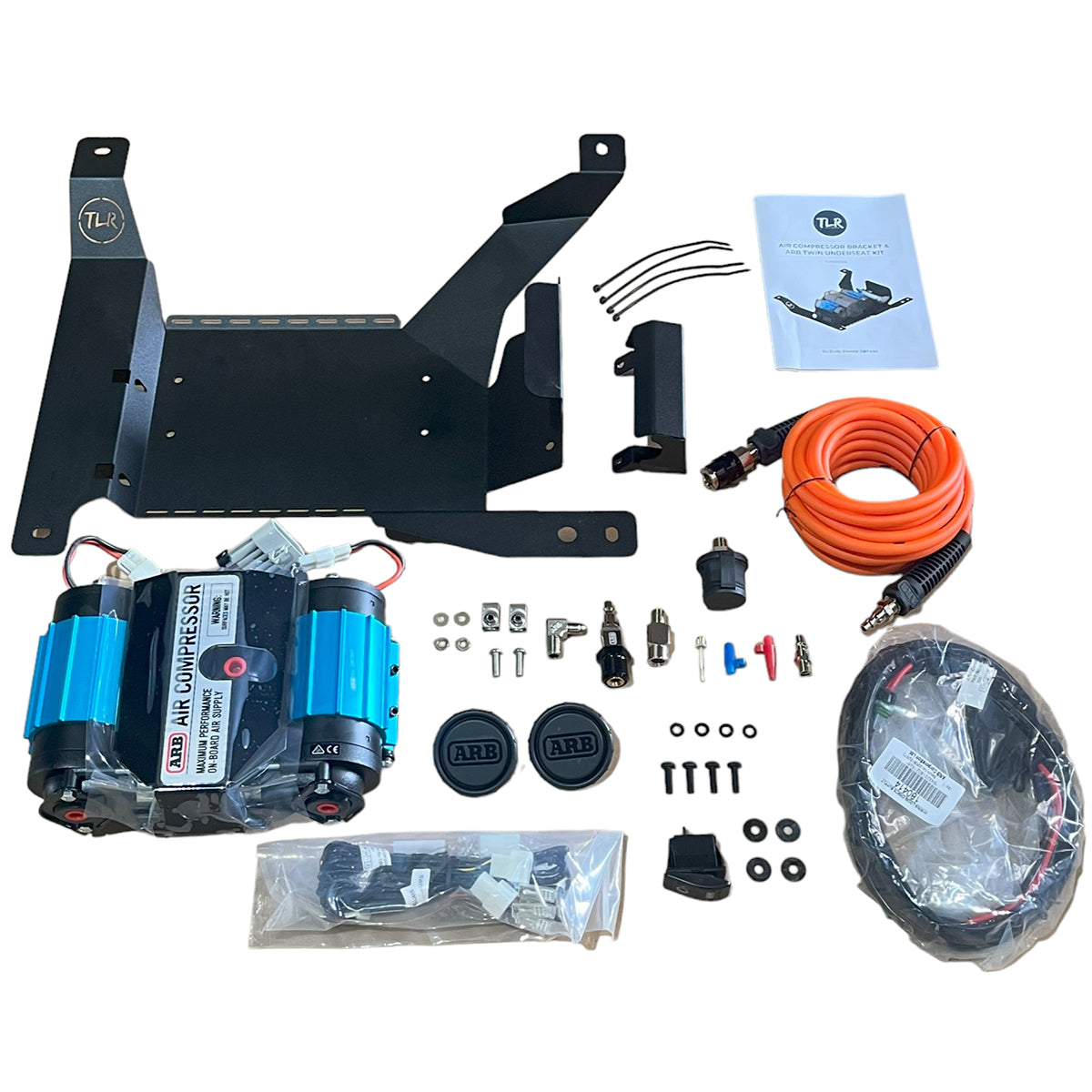

Includes:
- TLR Products Compressor Bracket Set.
- Fitting kit including all hardware and fasteners required for fitment.
- ARB Twin Air Compressor
- ARB Pump Up Kit.
- ARB Air Coupling.
Note:
- Weight: 16 kg
- Dimensions: 660 x 480 x 180 mm
- Warranty: 3 years
- Fitting time: Approx 1 hours
- ARB Air Manifold is sold separately.
