MG-X Rear Panhard Relocation Bracket (JB74/JC74)

$99.00 AUD
Will this fit my Suzuki Jimny?

This product fits both JB64 & JB74 3 door (2018 to current), & all JC74 5 door XL/Nomade Jimny's (2023 to current).

View details

Keeping the suspension geometry correct is important when lifting your Jimny. The MG-X Rear Panhard Rod Relocation Bracket is engineered specifically for both the JB74 3 door & JC74 5 door Jimny to correct rear panhard geometry, improving axle alignment and handling performance both on and off-road.

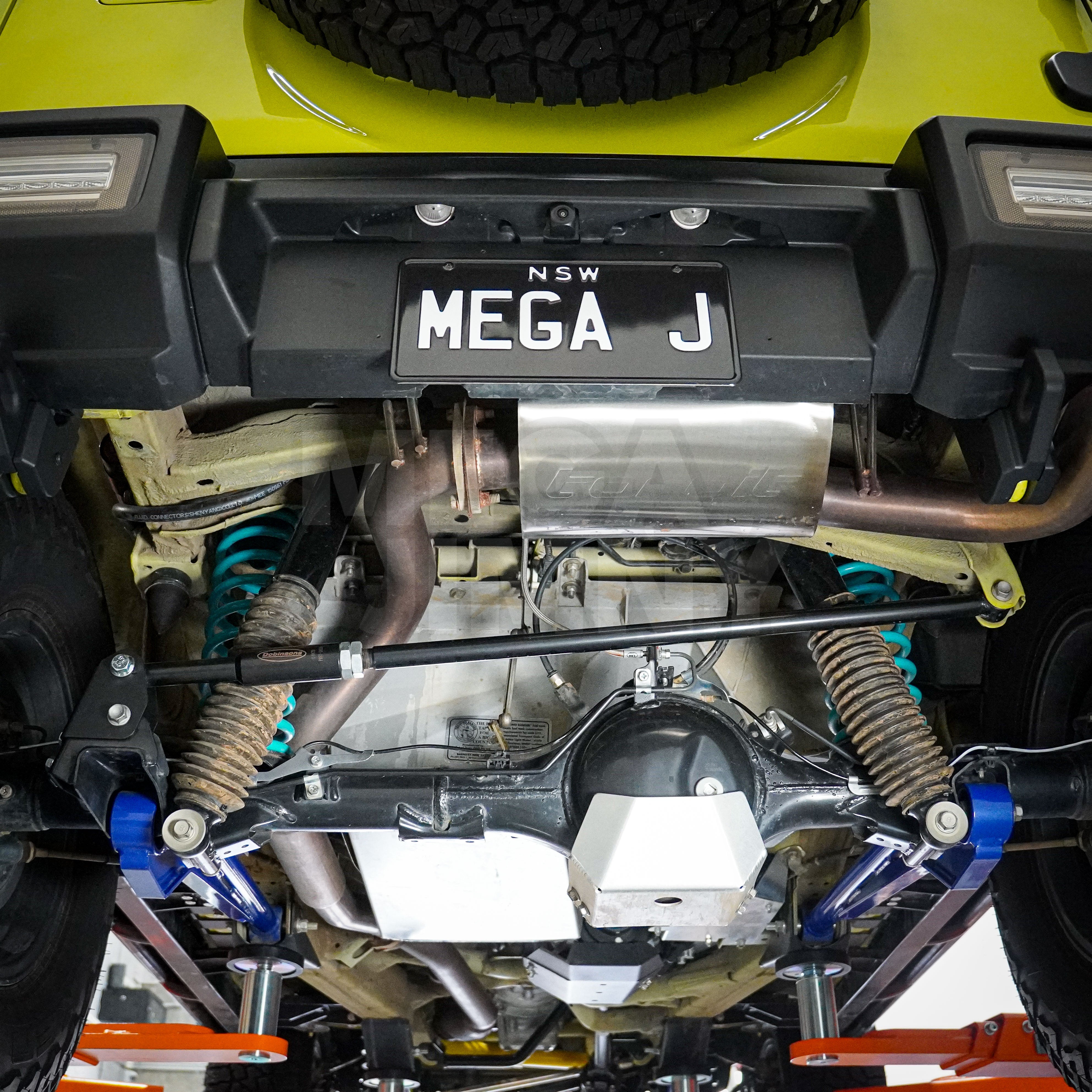

These brackets suit Jimny's with a 2" or more lift kit, just like our shop JB74 Jimny (pictured) which has a quite tall 3" Dobinsons lift kit fitted.

Info & Specs:

  • Will fit both JB64/JB74 3 door and JC74 XL 5 Door Jimny's
  • Installation time - Approx. 15 minutes.
  • Tools needed for installation: 15mm/17mm/18mm/19mm spanners or sockets.
  • Made from 3mm thick mild steel and powder coated texture black.

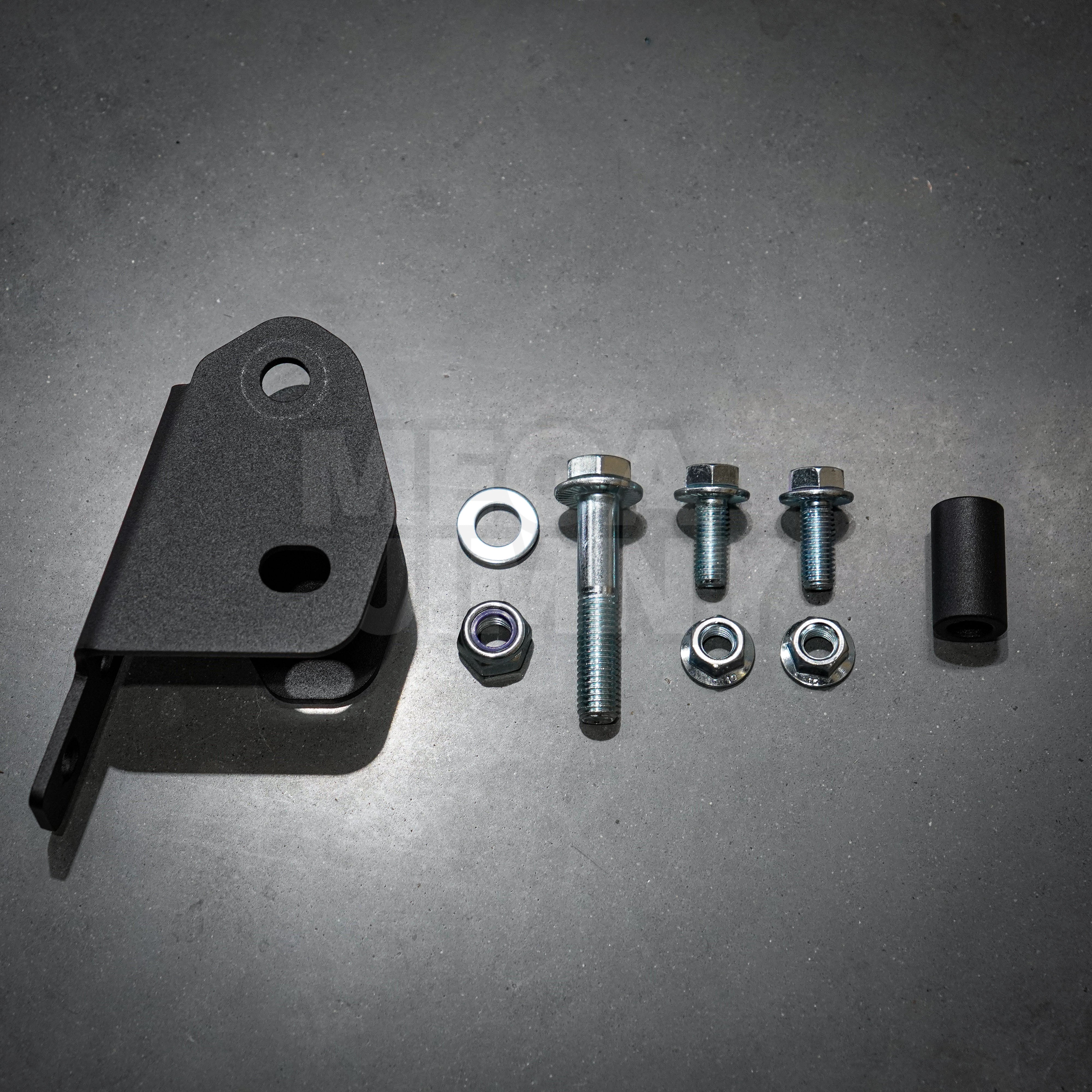

  • All fasteners are included along with a metal cylinder spacer which goes on the inside of the bracket where it bolts to the diff mounting bracket.
