TLR Under Seat Compressor Bracket

$165.00 AUD
Will this fit my Jimny?

This product fits both JB74 3 door & JC74 5 door Jimny's.

TLR Products Air Compressor Bracket to suit a Suzuki Jimny JB74W Under Seat

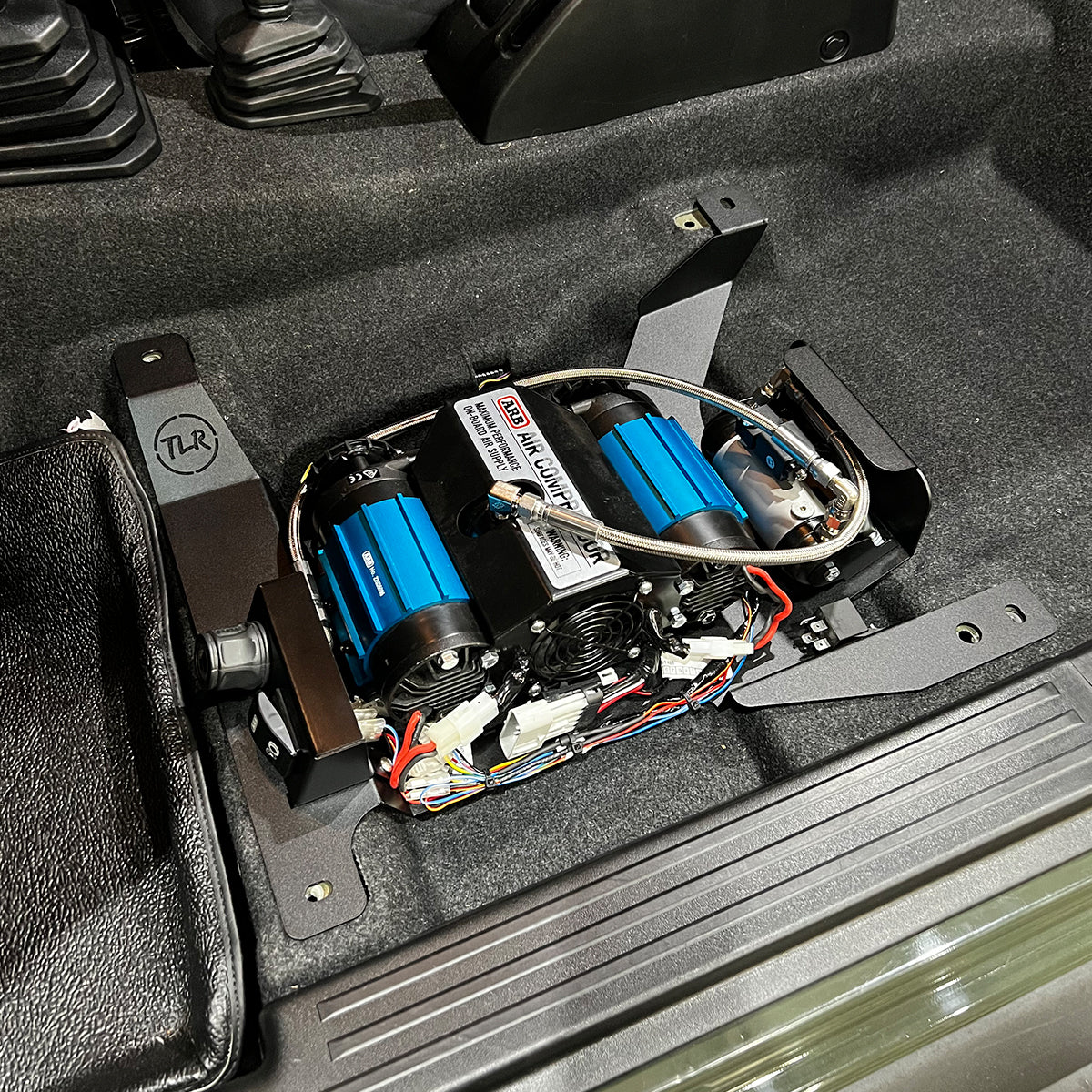

This TLR Products Air Compressor Bracket is design to mount the ARB Twin Air Compressor (CKMTA12) in the unused cavity located under the passenger side front seat of a Suzuki Jimny JB74W, this mounting location provides to opportunity to mount the large compressor in the Jimny without using any of the valuable cargo space.

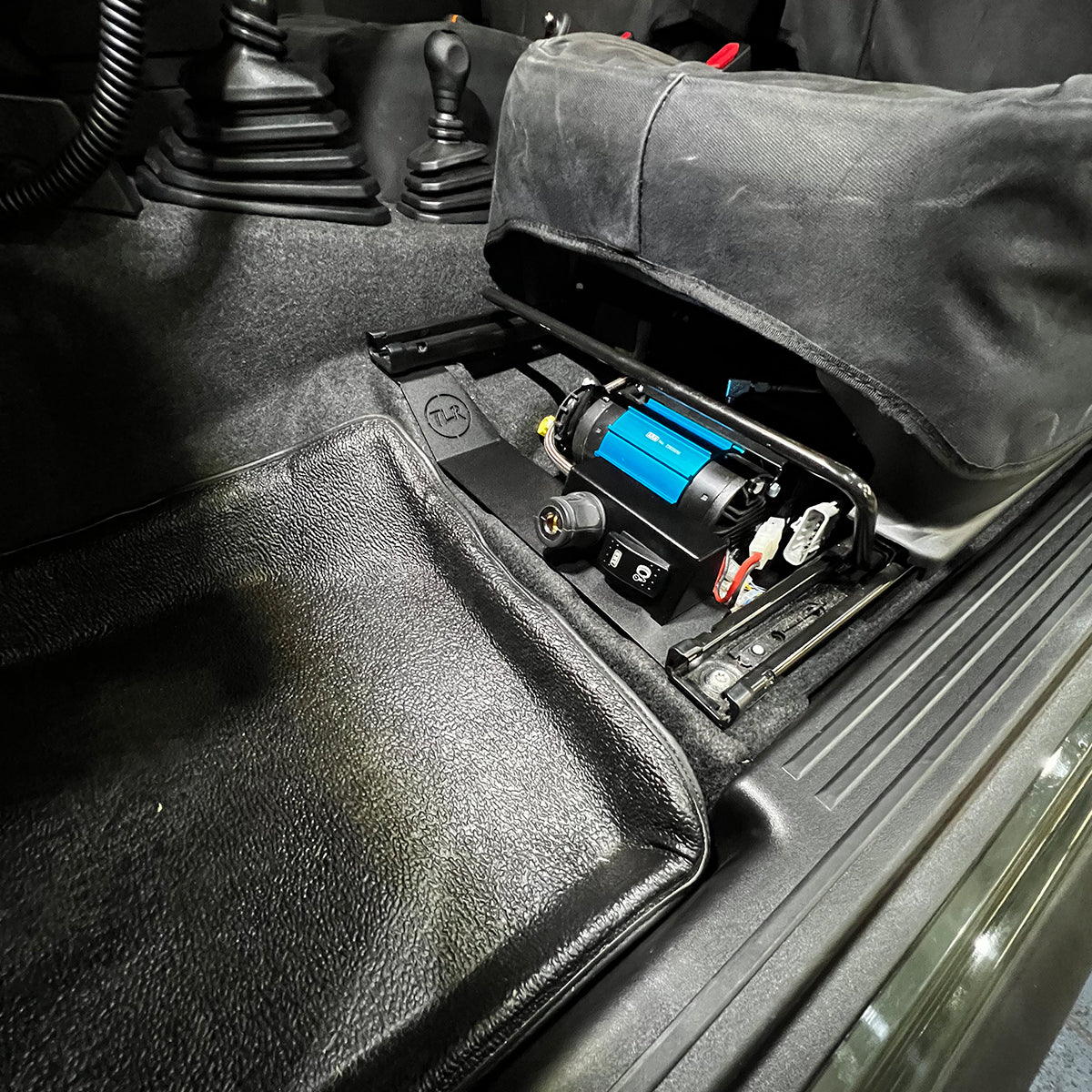

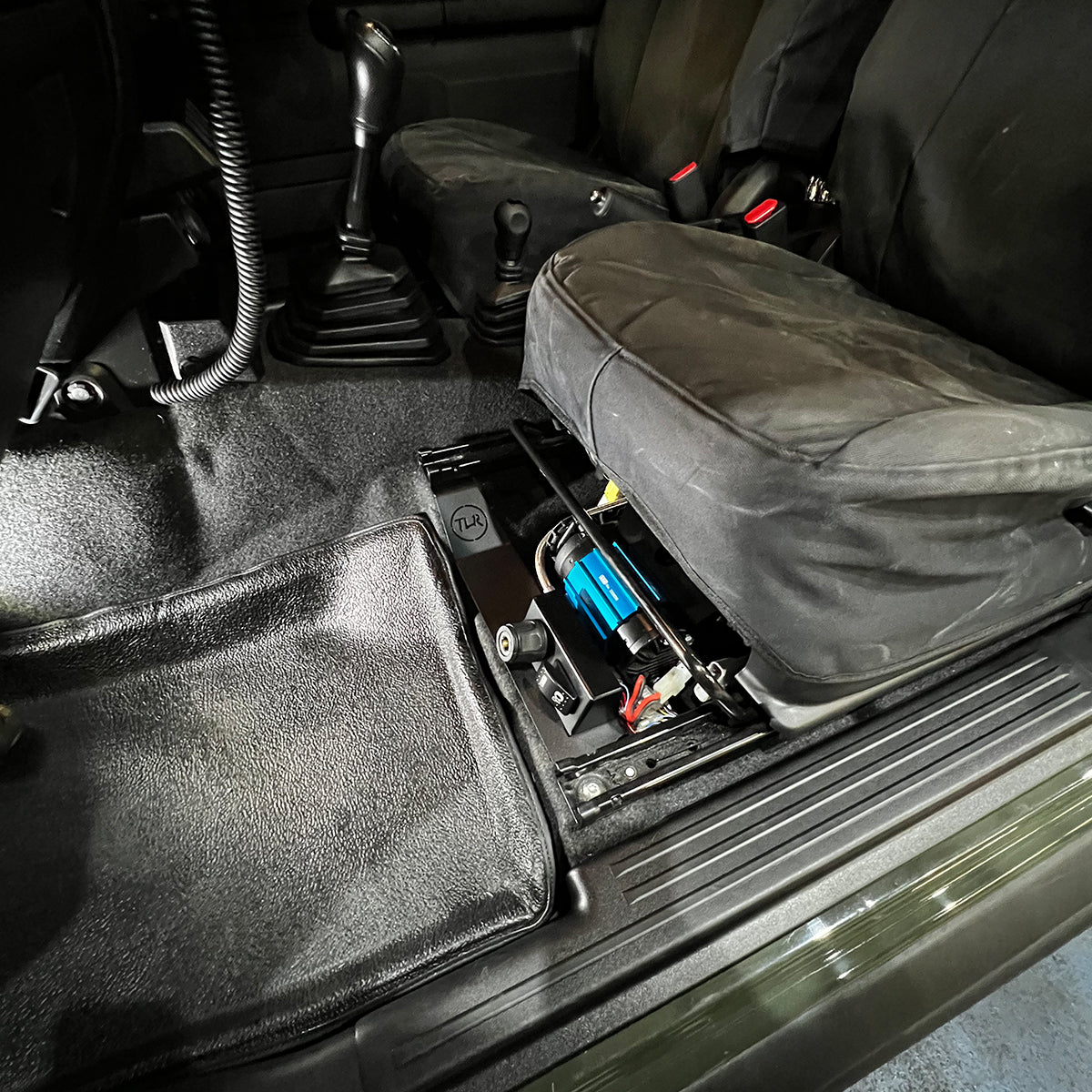

The bracket set comes with a bolt on bracket to house the electrical Toggle Switch and ARB Air Coupling, this small bracket mount to the front of the main bracket and locates the switch and coupling in the front footwell to provides easy access and use of the compressor.

There are also holes provided for mounting the Additional ARB Air manifold on the rear section of the main bracket, all components are protected by the small kick panel manufactured on the rear of the bracket.

Features:

  • Switch and Air Coupling Mounting Bracket
  • Suits ARB Twin Air Compressor (CKMTA12) and ARB Manifold Tank

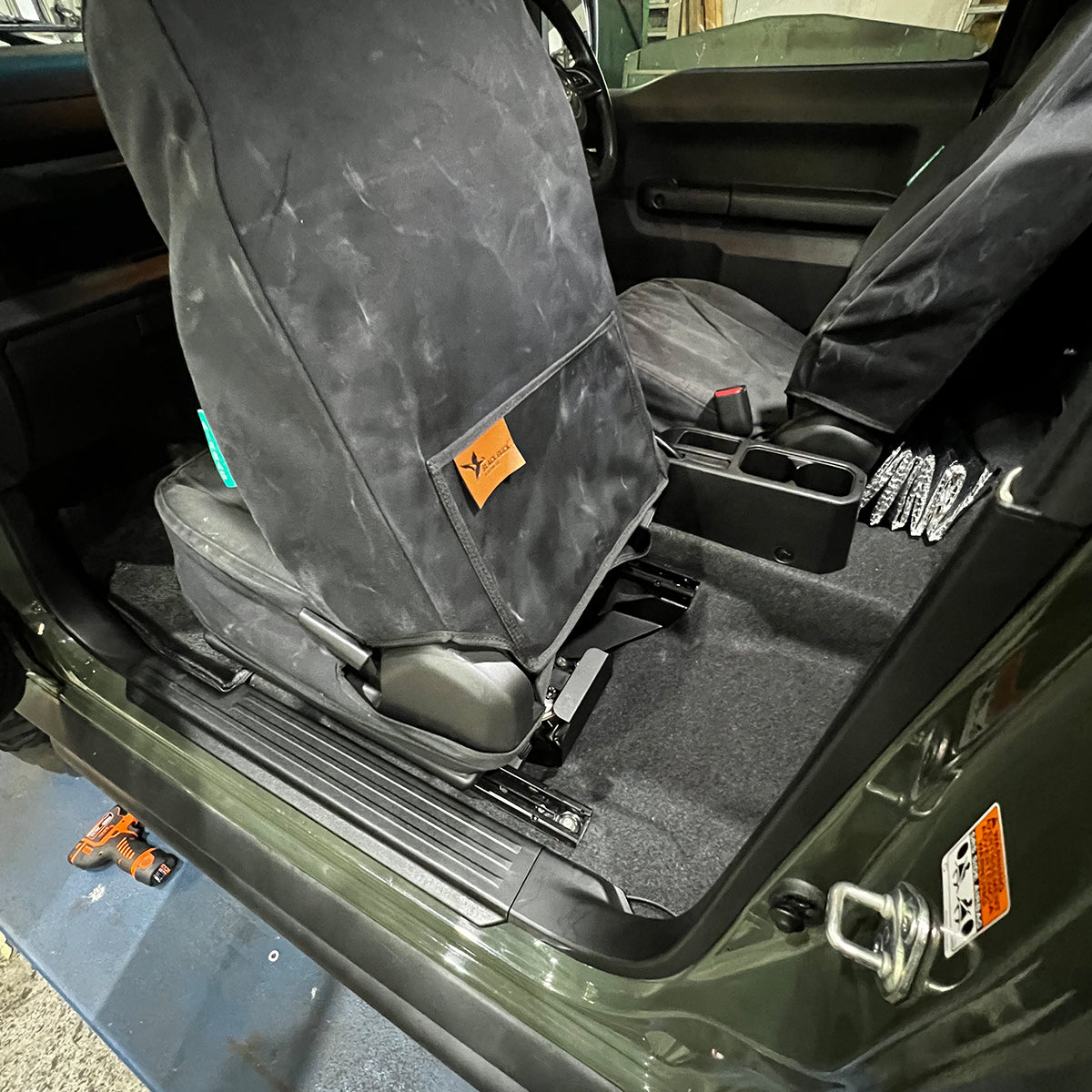

  • Space saving design mounts under the passenger seat of the vehicle
  • Laser cut from zinc coated 2 mm steel.
  • Powder coated in a black textured finish for added corrosion resistance and aesthetics.
  • Use of pre-existing holes. No drilling required.

Includes:

  • TLR Products Compressor Bracket Set.
  • Fitting kit including all hardware and fasteners required for fitment.

Note:

  • Weight: 7 kgs
  • Dimensions: 660 x 480 x 180 mm
  • Warranty: 3 years
  • Fitting time: 1 hours
  • Air compressor, additional hoses and fittings required for fitment are sold separately.

Download TLR's fitting instructions here.
