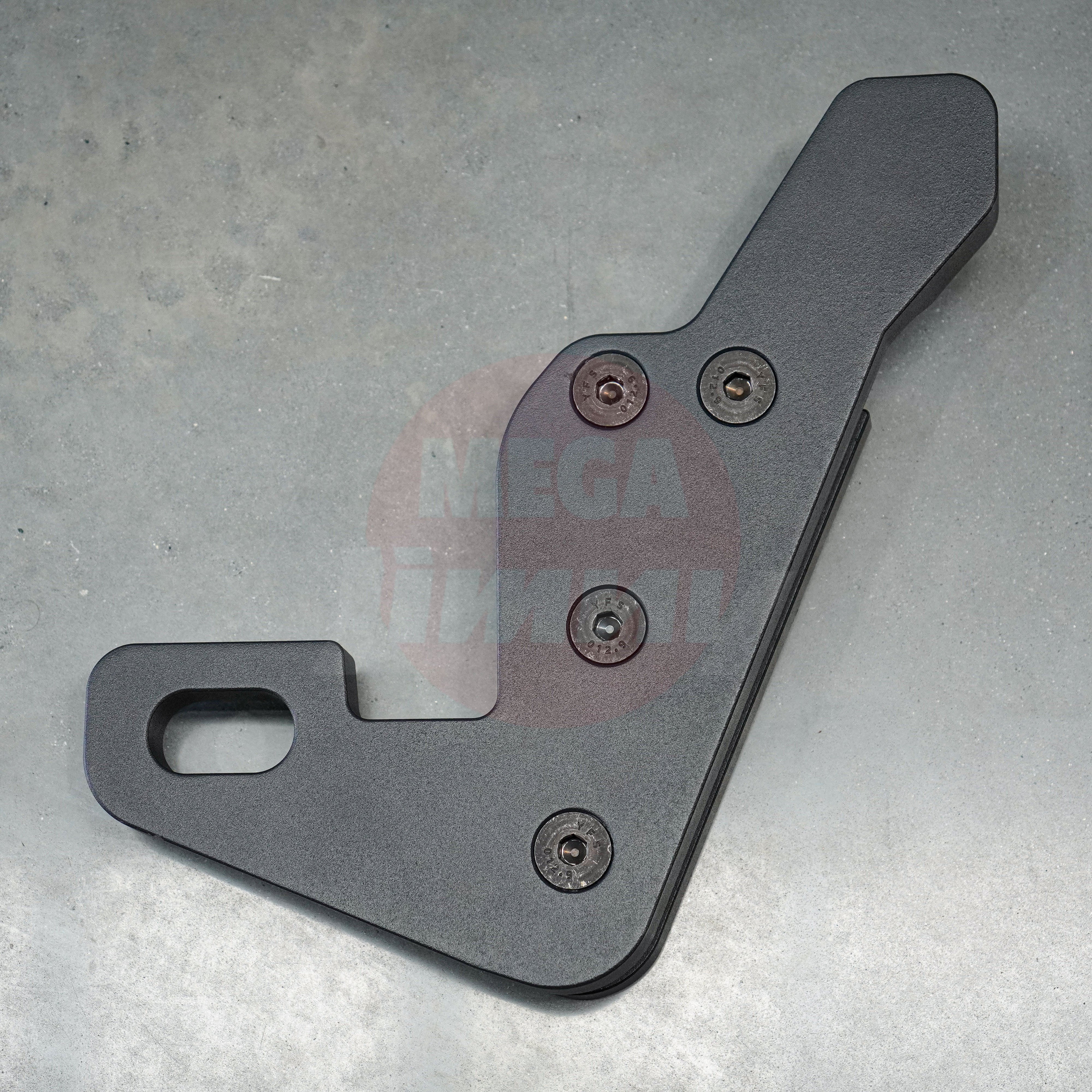

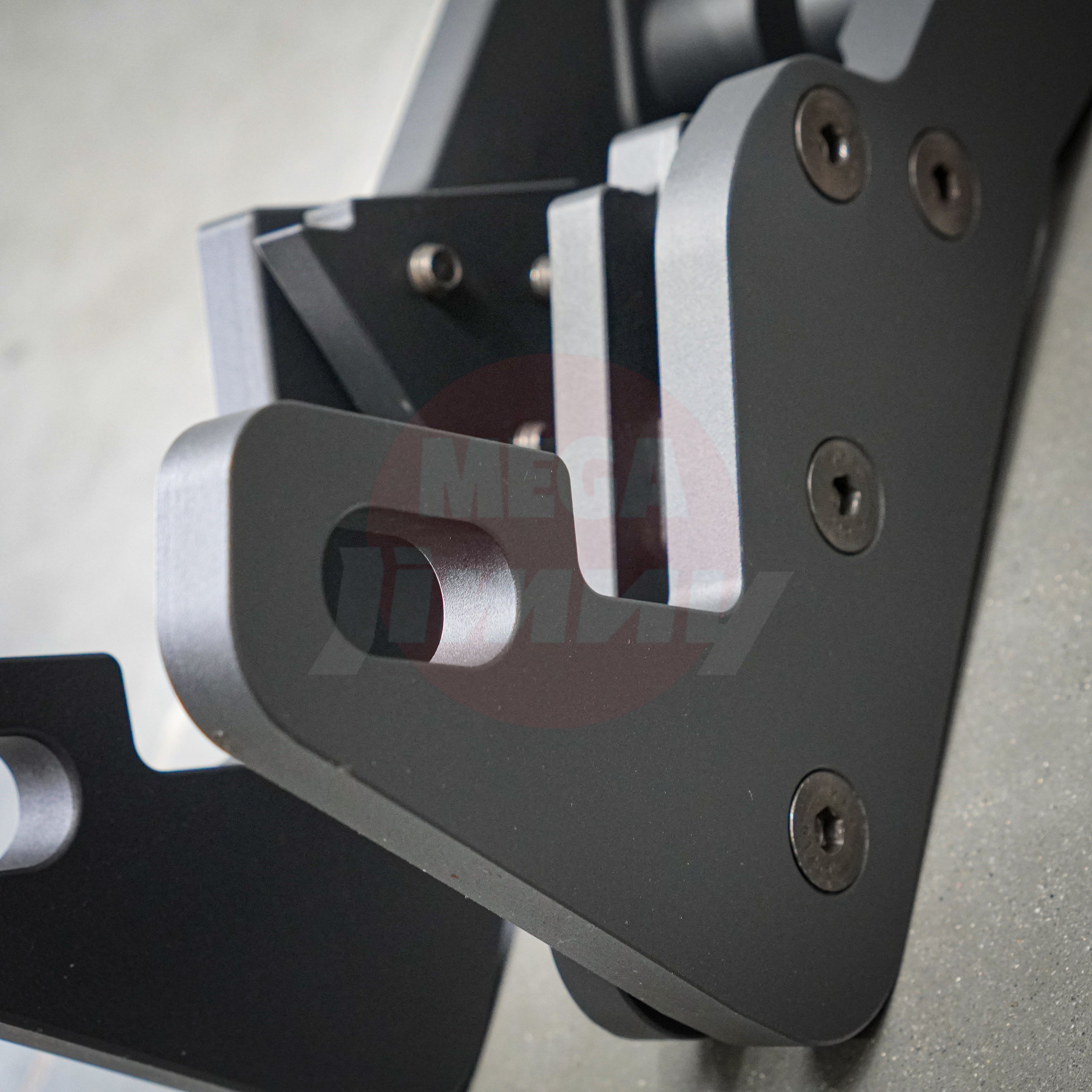

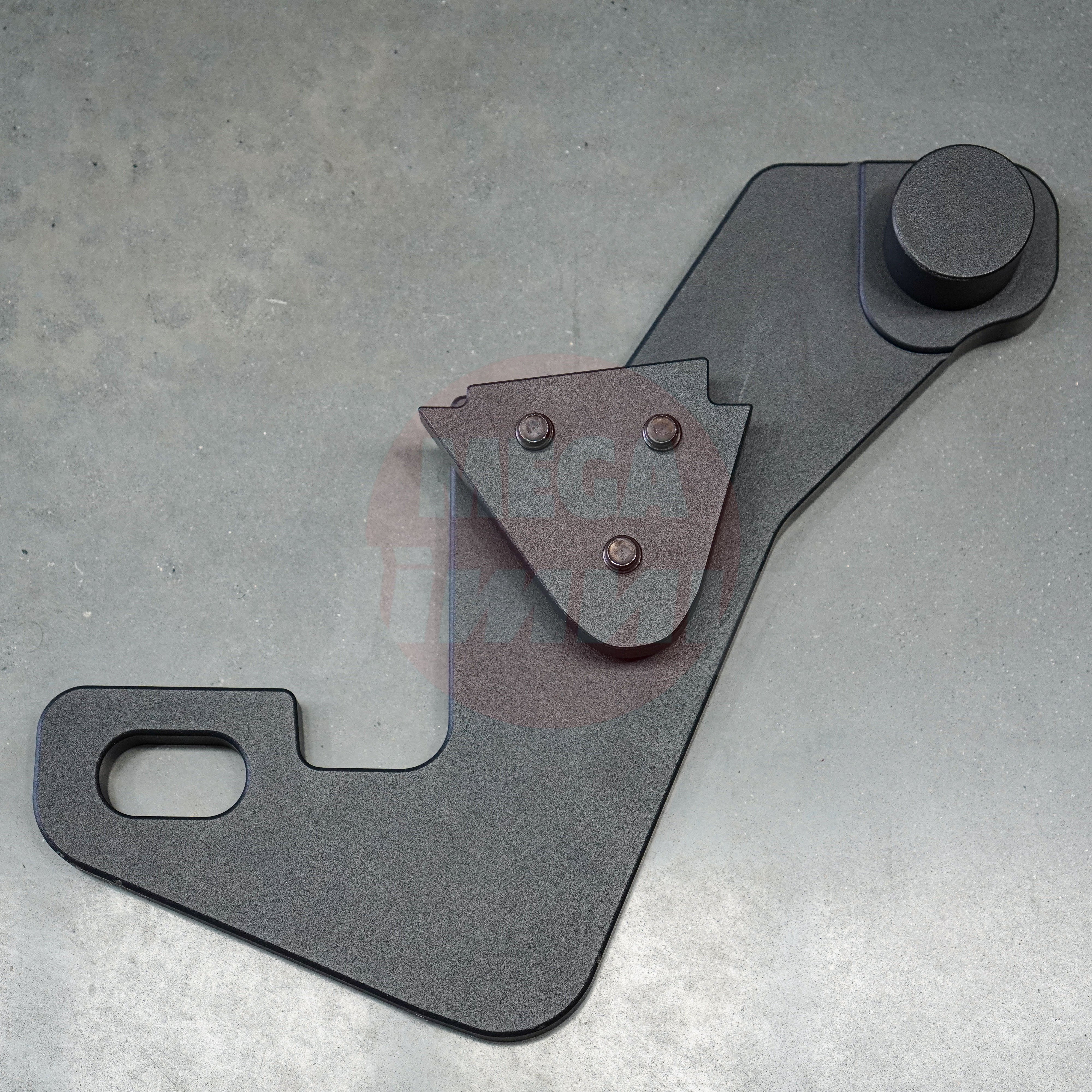

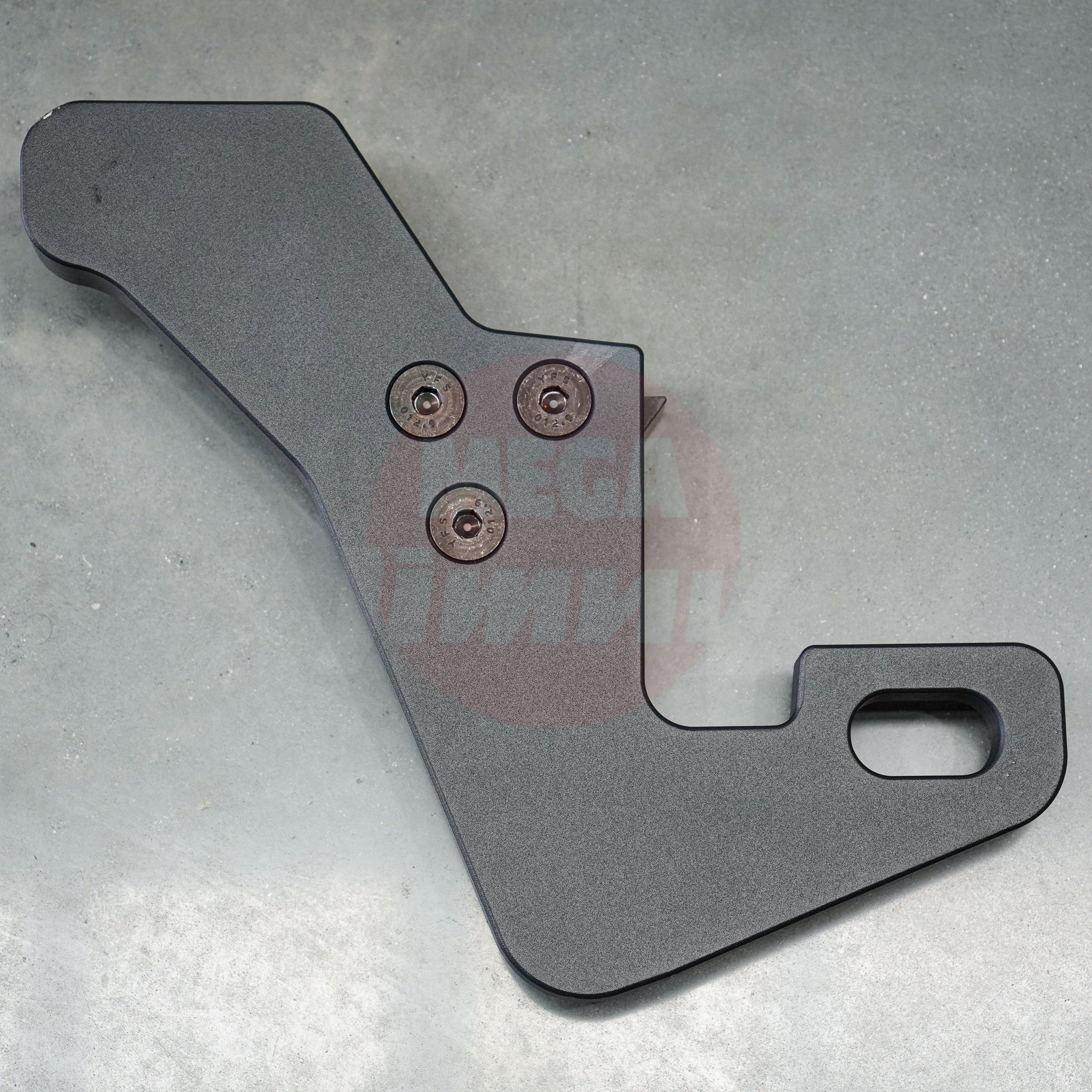

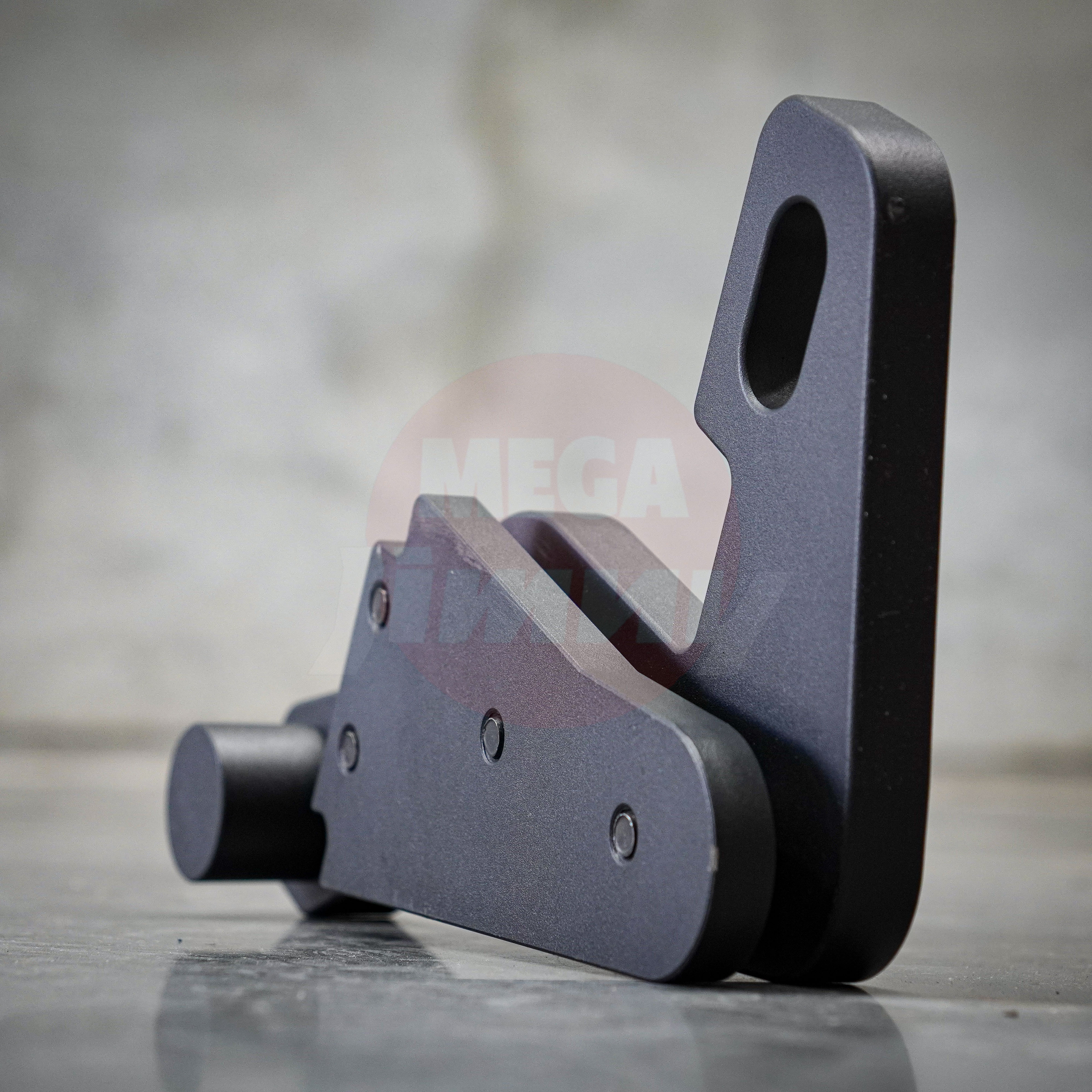

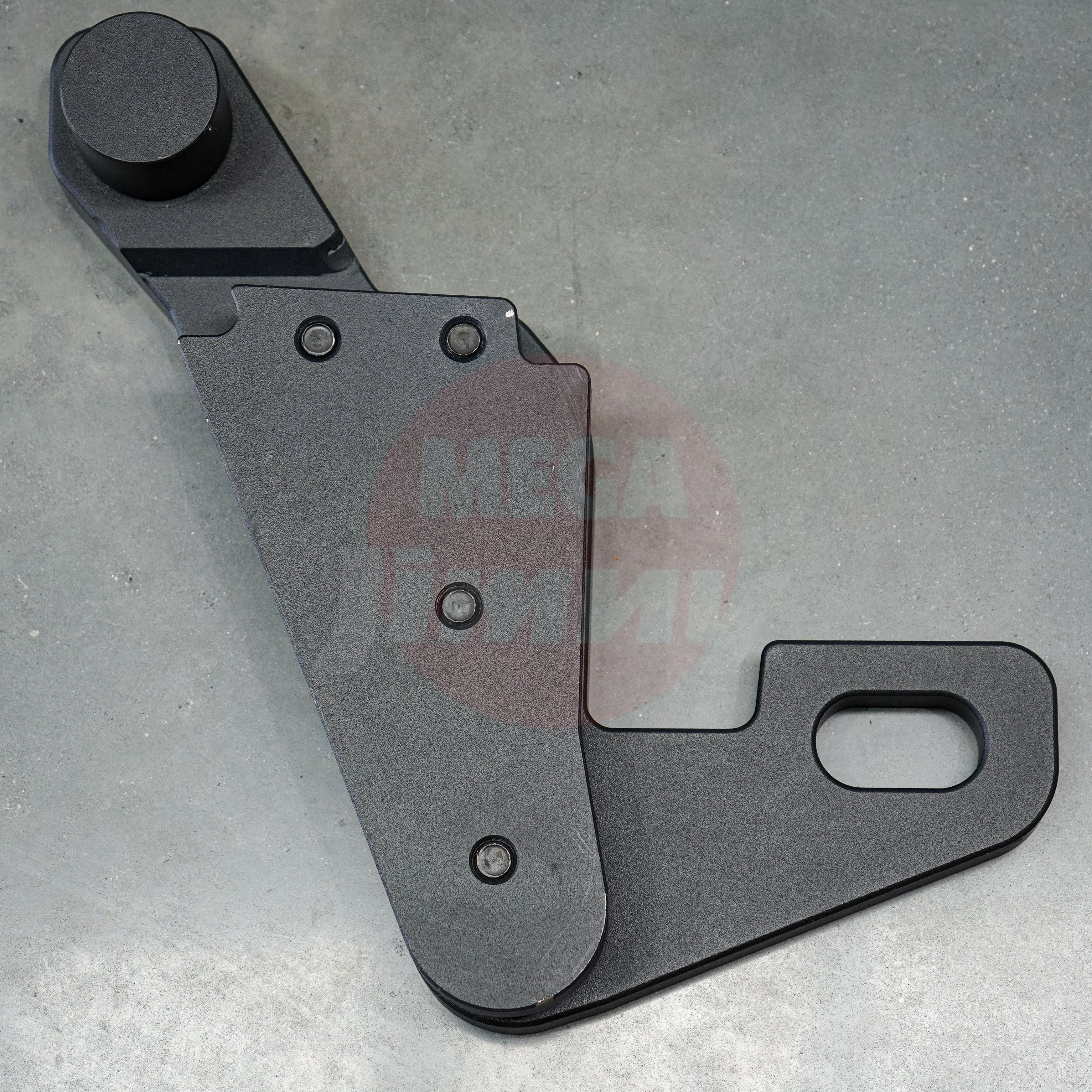

Introducing our brand new MG-X Pro Front Recovery points, the strongest rated and certified recovery points ever made for the Suzuki Jimny platform.
Currently in production - ETA: Mid/Late March~. If you'd like to pre-order a set, please email us. Very limited pre-order allocations available.
These recovery points have been designed entirely in house by our team and have been put through the very long process of certification and destruction testing by a third party NATA approved engineering company, to confirm that our recovery points will hold up to literally anything that you put them through.
These may be extremely overkill for our beloved Jimny's, but it's always better to be safe than sorry - especially when it comes to recovery points.
Info & Specs:
- Made using a 5 axis CNC machine.
- Made entirely from billet forged mild steel.
- M12 12.9 Hardness Countersunk bolts included.
- Minimum 20mm thickness on both recovery point and mounting bracket.

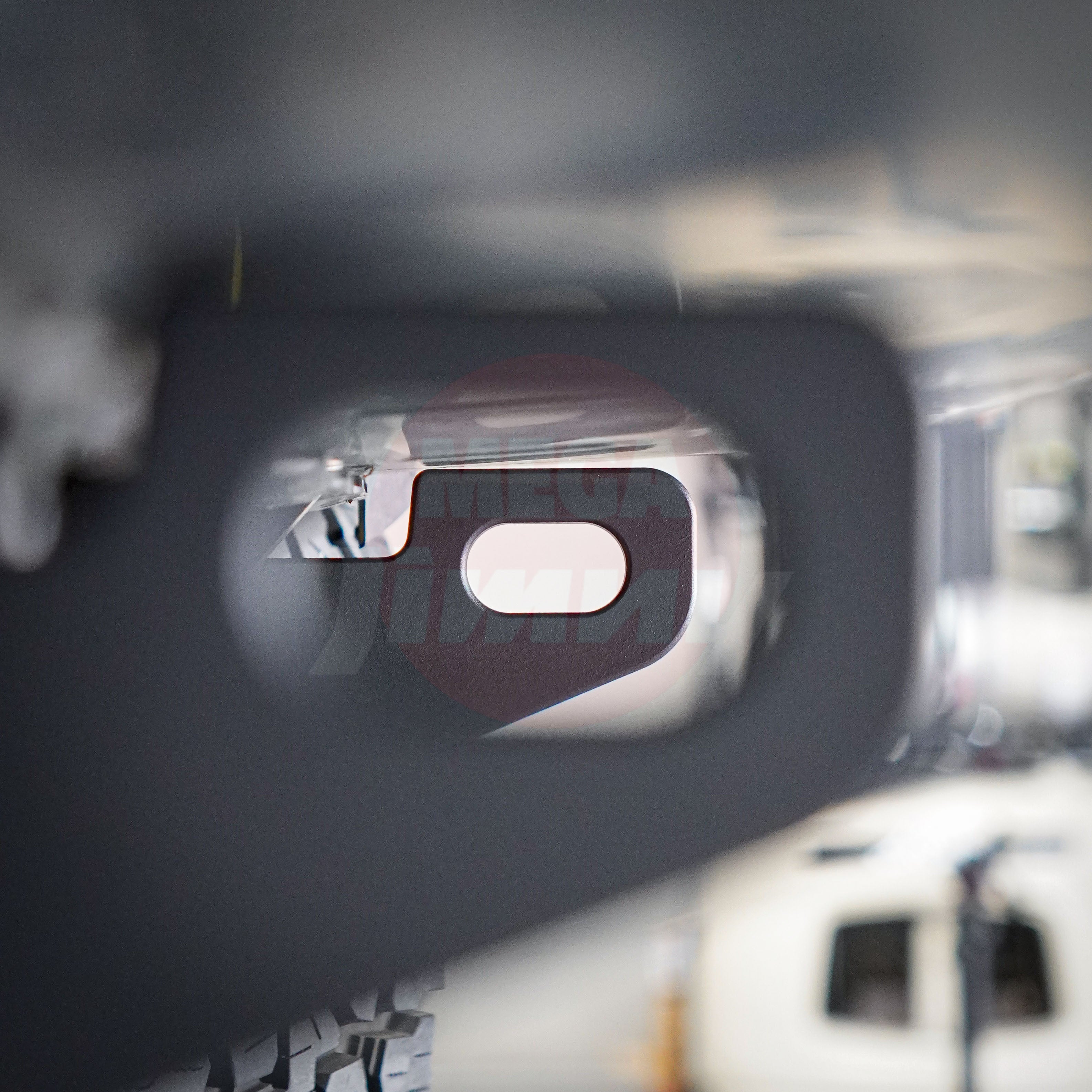

- 8mm radius edged opening (Soft Shackle compatible).
- Weight: Approx. 6.5kg per side.
- Installation time - Approx. 15 minutes per side. Fully bolt on, no additional parts need to be removed or modified to fit these recovery points.
Third Party Certification and Testing results:

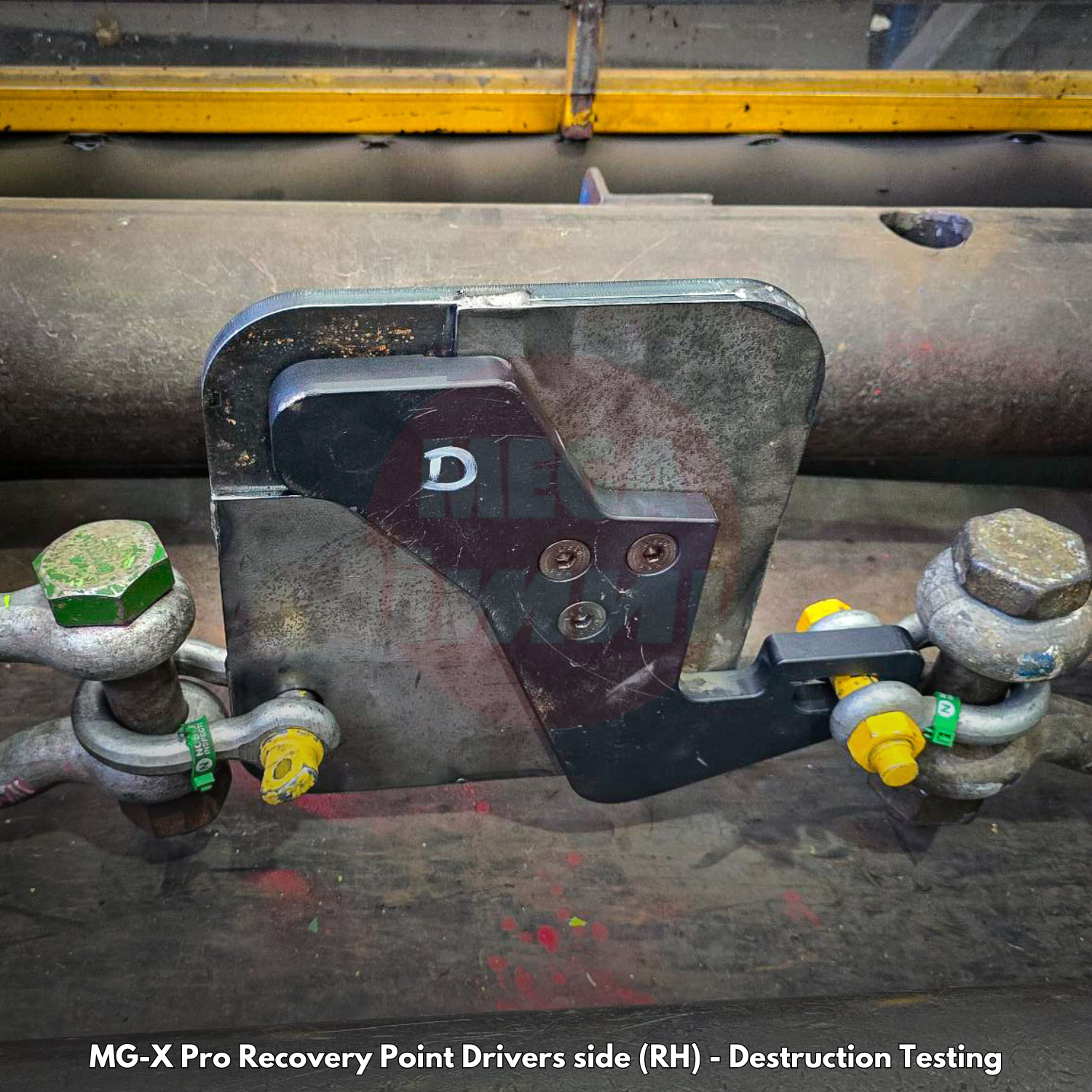

MG-X Pro Drivers Side (RH) recovery point:
Failure at 96kN - 9.8 tones of force applied.
(Certificate Number: NAAE1256)

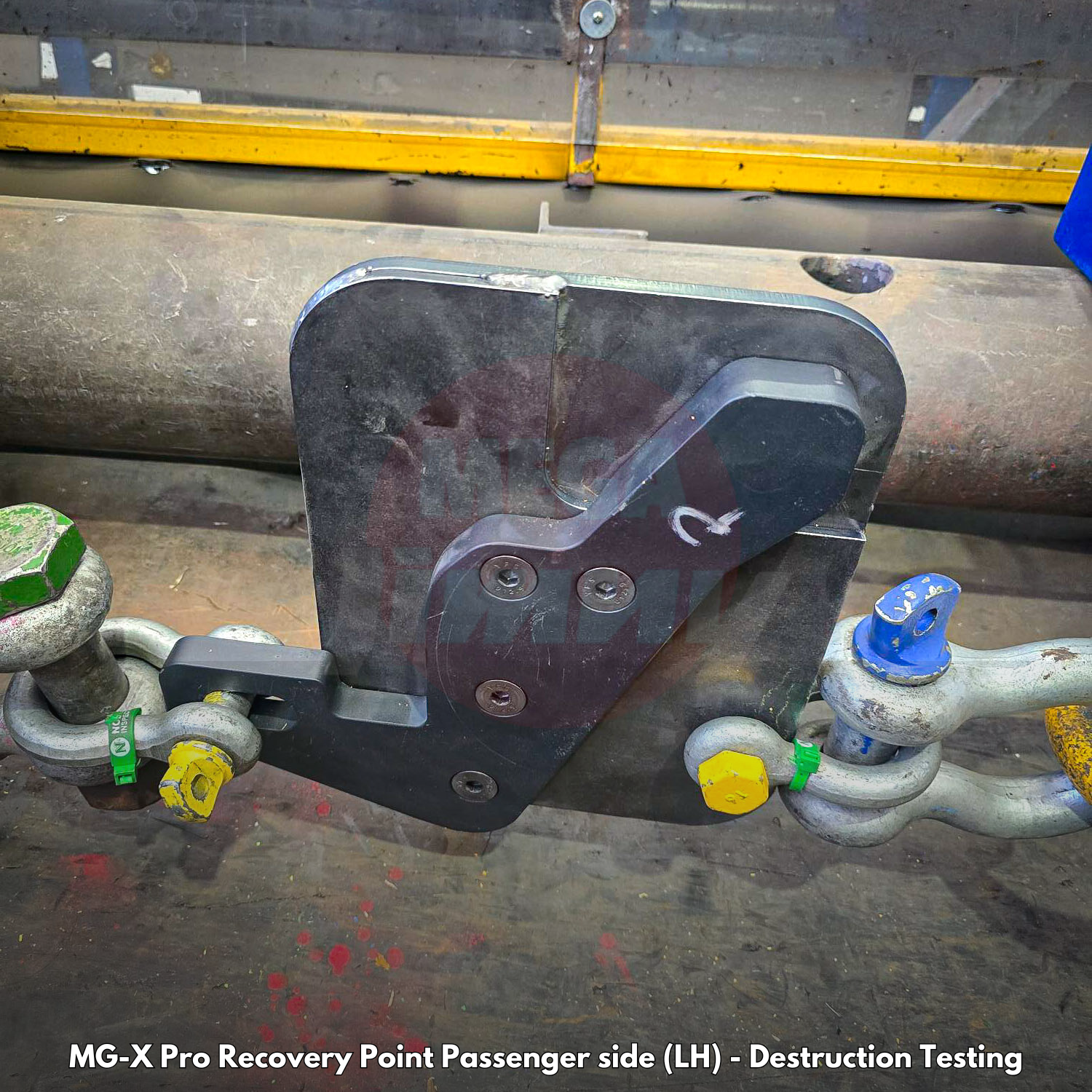

MG-X Pro Passenger Side (LH) recovery point:
Failure at 119.6kN - 12.2 tones of force applied.
(Certificate Number: NAAE1257)
Both recovery points failure reason: Bolts snapped - Both tested recovery points are still fully intact (and on display at our shop if you'd like to check them out!).
This means that if by a miracle, your Jimny's chassis is still in one piece after that amount of force is applied, the recovery point would still be attached to your Jimny due to how our recovery points attach to the welded-in tube sections featured on your Jimny's chassis from factory.
Only 1mm of deformation was found at the eyelet end after testing (the part where you'd attach your snatch strap/recovery gear to).
Considering the weight of a Jimny is between 1,050-1,220kg depending if its a JB74 3 door or JC74 5 door, your Jimny's chassis will tear off long before these will!
Please note:
- Will fit both 3 door JB74 and 5 door JC74 XL/Nomade Suzuki Jimny's.
- Will fit Jimny's fitted with ARB Summit bull bars - may not fit all bull bar configurations.
- Compatible with larger/quick disconnect aftermarket sway bars
- Additional engineering engraving has been added to the recovery points that isn't pictured.
- Price includes both left and right hand side recovery point sets - not sold individually.
- Engineering documents, photos and more information are available on request.
We've also developed matching MG-X Pro Rear Recovery points, also coming very soon!
