Are you doing a custom turbo build for your Jimny? This turbo is the one to pick!
Garrett's Club Line is a range of turbochargers that are engineered specifically for small engine displacements, just like our Jimnys! This turbo can produce between 150-350 horsepower.
These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups.
Garrett Boost Club Line Features
- Frame sizes => 17, 20, and 22
- 17, 20 and 22 outline interchangeable
- 150 –350 horsepower capability
- Integrated wastegate assembly with calibrated actuator
- Billet compressor wheel with extended tip design for higher pressure ratio capability
- GTX Gen II compressor aero with modern gasoline turbine wheel aero
- Inconel turbine wheel material
- Ductile iron (SiMo+) turbine housing material
- Latest generation of journal bearing rotor group
- 360-degree thrust bearing
- Oil-cooled center housing
- Boost signal port with installed plug
- Designed to use existing 480009 actuators

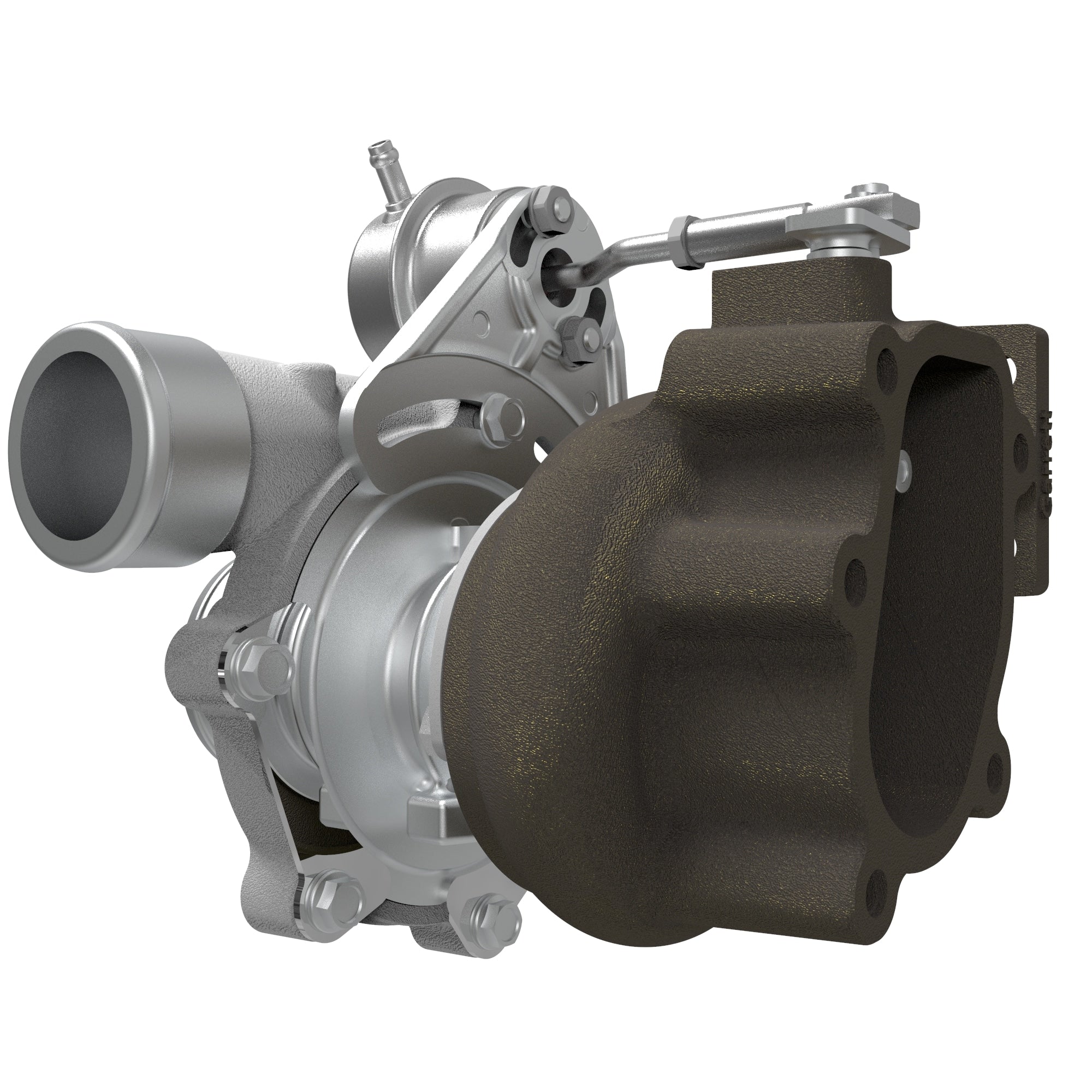

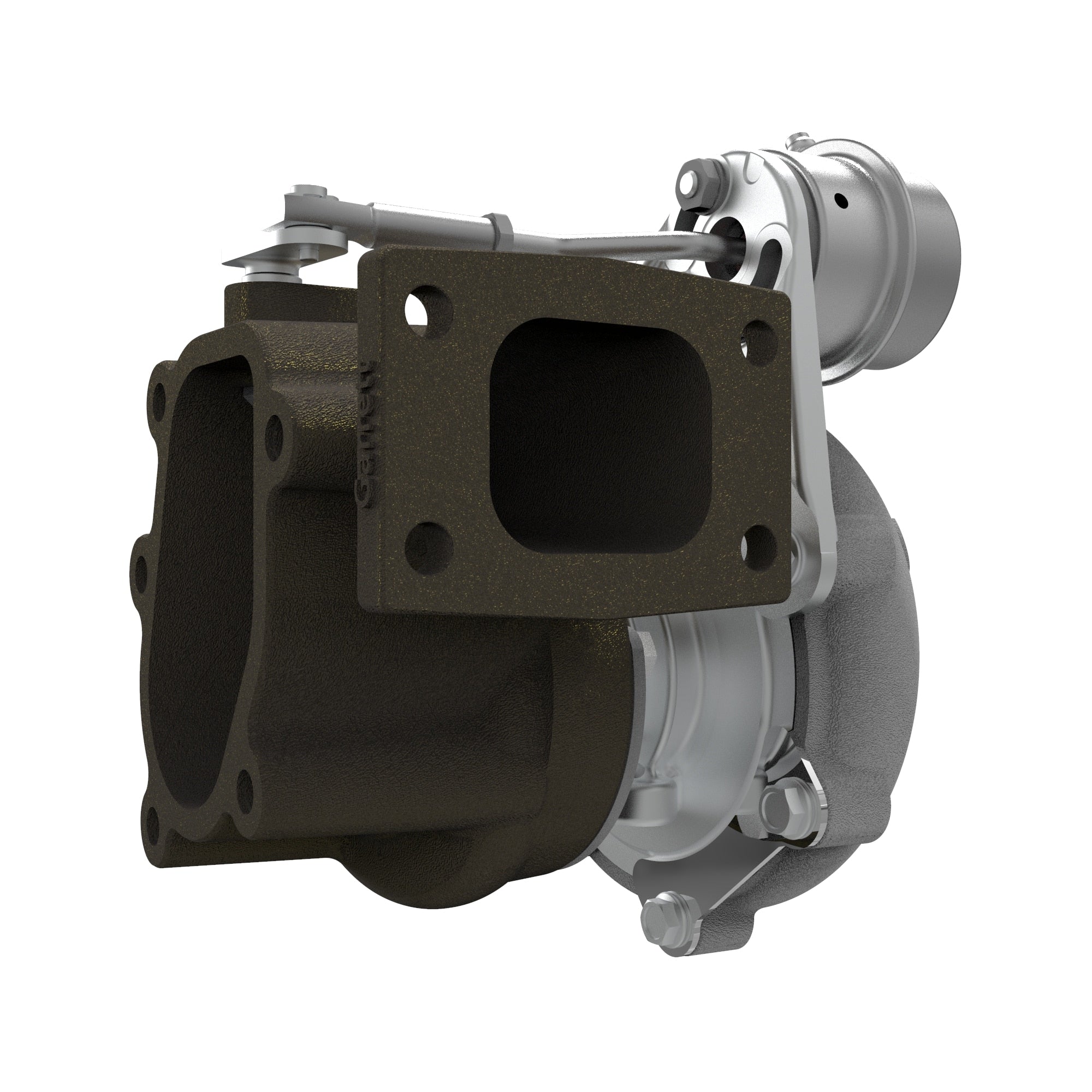

Garrett GBC17-250 36mm Turbocharger
