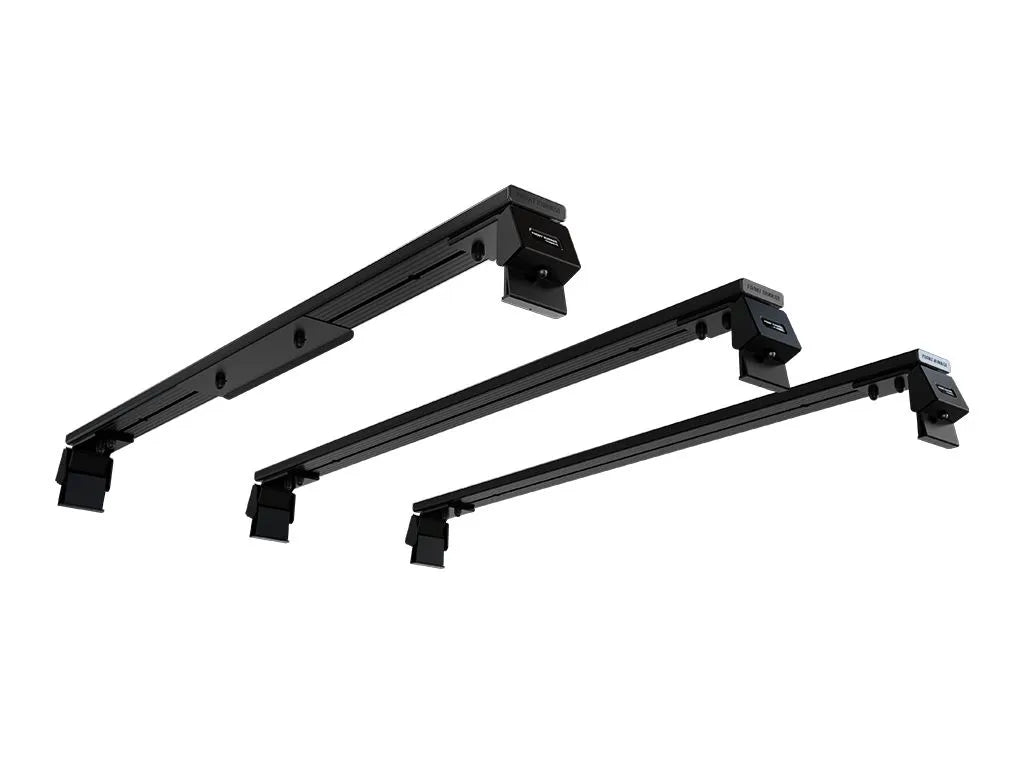

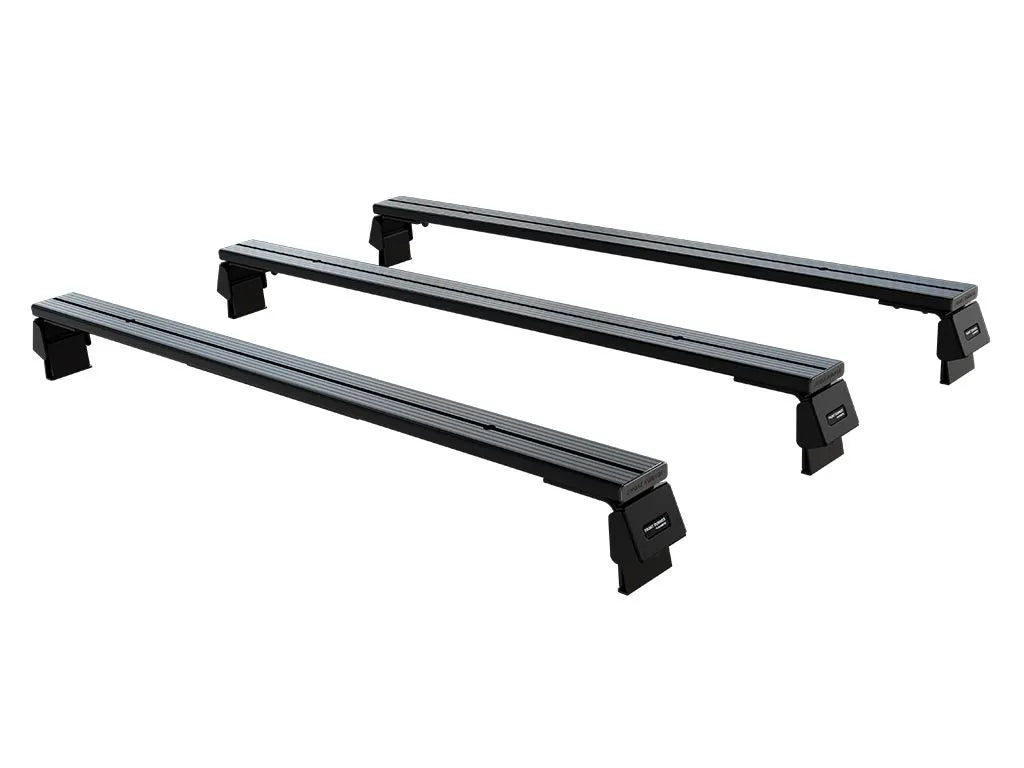

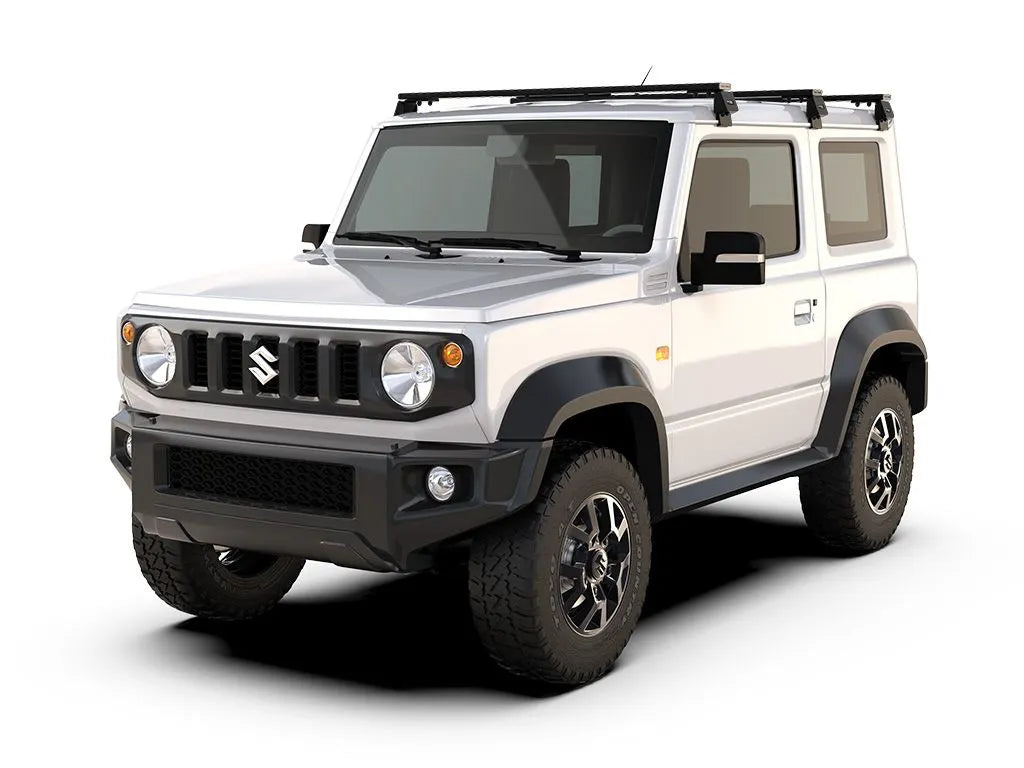

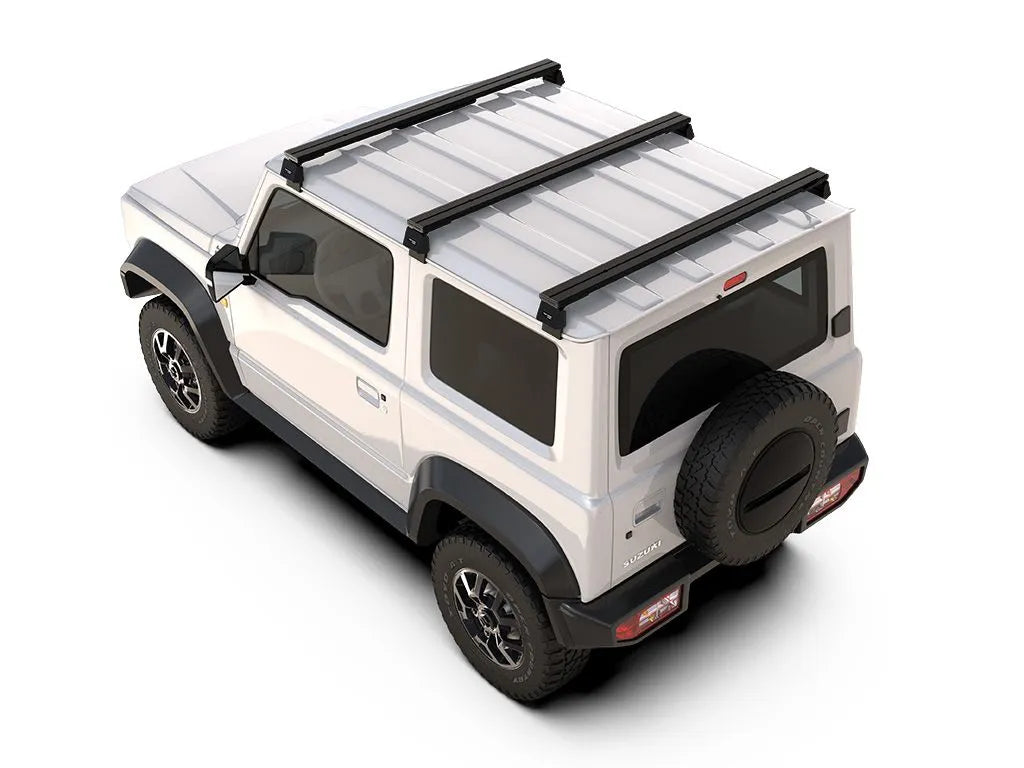

Introducing Front Runner's new Triple Load bar kits! Particularly perfect for the JC74 XL Jimny, but will also fit the JB74 3 door Jimny just fine as well.
This low profile, smaller footprint solution includes 6 130mm Gutter Mount legs, 3 1345mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Dometic Load Bars to a Jimny.
- Can be used to mount a Front Runner Dometic Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.

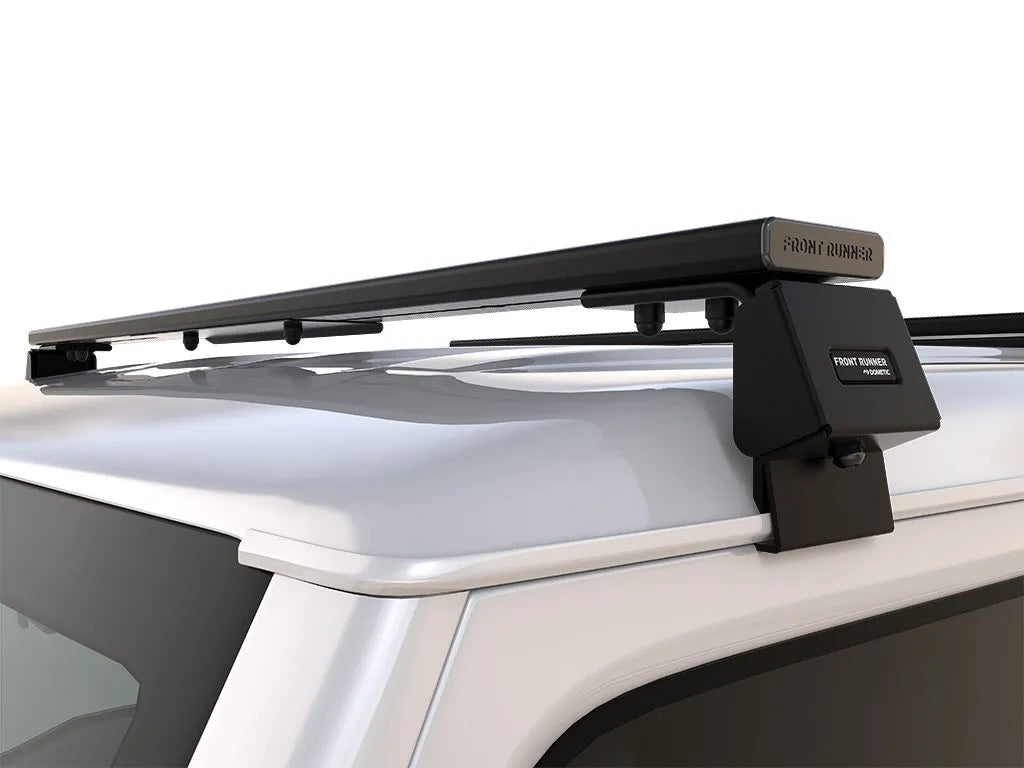

- The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
- Uses the same strong, corrosion free aluminium slats found in Front Runner Dometic Slimline II Racks.
- The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
- The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Dometic Roof Rack.
- Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
- Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
- Note: Load carry limit and accessory compatibility is reduced with load bars, Please also check the maximum roof load capacity of your vehicle.
Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.
Info & Specs:
Kit includes:
3x LASS102 - No 2 Leg 130mm (Pair)
1x LASS121 - Universal Pinch Weld Strip / 6 Piece
1x LBSK022 - Roof Load Bar Set 1345mm(W)
1x WDLB001 - Load Bar Wind Deflector / 10mm
Material Used:
Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 12kg (26.46lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 120mm (5")
Length: 1490mm (59")
Height: 230mm (9")
Shipping Weight:
Weight: 12kg (26lbs)
