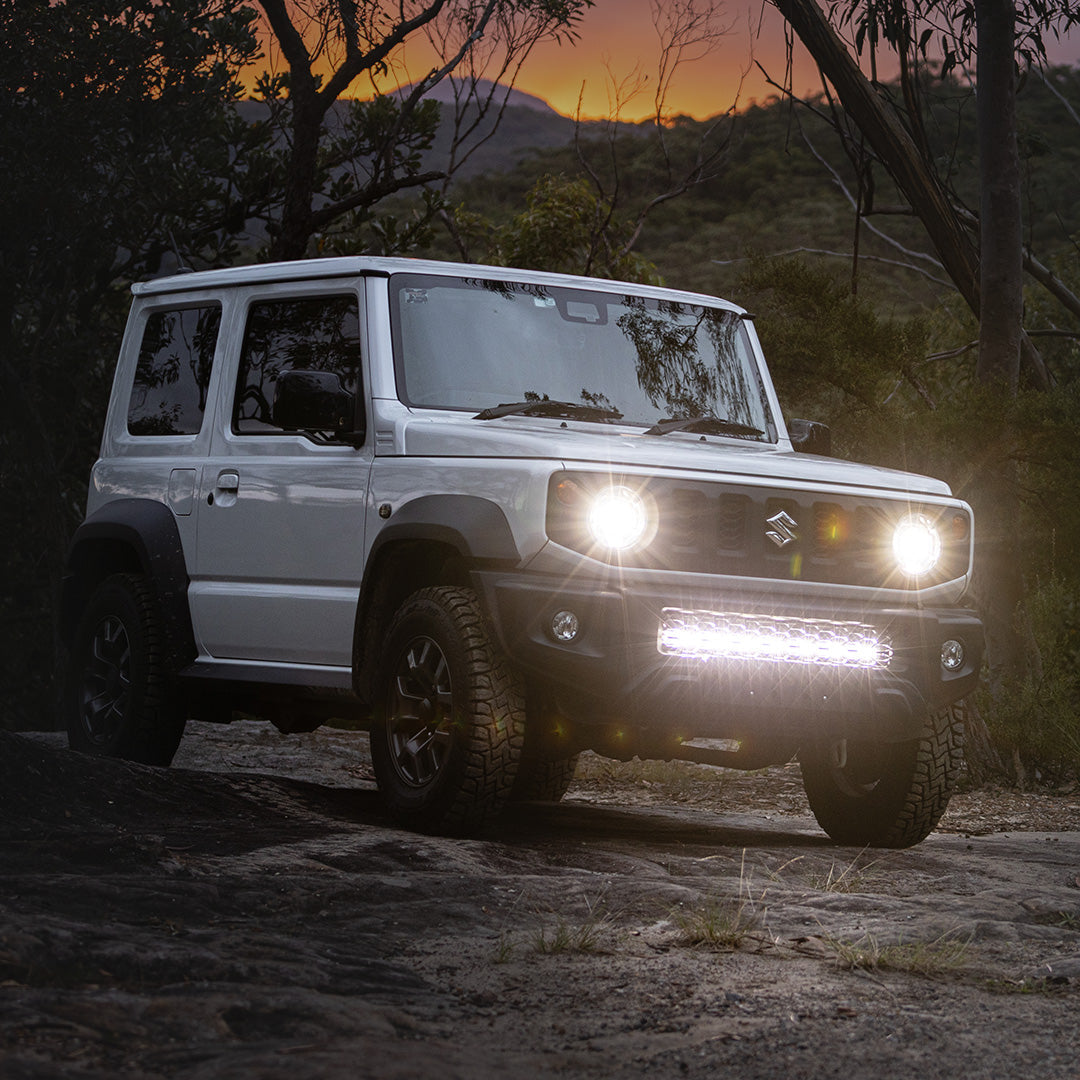

Suzuki Jimny 4x4 System Explained: How ALLGRIP Pro Works

Ever wondered what makes the little Suzuki Jimny such a beast on the trails? The answer lies in its clever 4x4 system called ALLGRIP Pro. This isn't your typical part-time 4WD setup that you'll find in many bigger vehicles - it's a sophisticated system designed specifically for the Jimny's compact chassis and adventurous spirit.

The Jimny 4x4 system has earned quite a reputation among off-road enthusiasts, and for good reason. Despite its small stature, this little warrior can tackle terrain that leaves much larger 4WDs scratching their heads. But like any piece of kit, understanding how it works will help you get the most out of your adventures.

Let's dive into the nuts and bolts of what makes the ALLGRIP Pro tick, when to use it, and how to make sure you're getting the most from your Jimny's capabilities.

What Is ALLGRIP Pro and How Does It Differ From Regular 4WD

ALLGRIP Pro is Suzuki's designation for the Jimny's part-time 4WD system, but don't let the marketing speak fool you - this is proper 4WD kit. Unlike full-time systems that constantly send power to all four wheels, ALLGRIP Pro lets you choose when you want all-wheel traction.

[collection-carousel="underbody-protection"]

The system operates through a transfer case that sits behind the gearbox, giving you three distinct modes: 2H, 4H, and 4L. In 2H (two-wheel drive high), power goes to the front wheels for everyday driving and keeping fuel consumption reasonable. Switch to 4H (four-wheel drive high) and you'll engage all four wheels, doubling your traction without sacrificing speed. Finally, 4L (four-wheel drive low) combines all-wheel traction with gear reduction for maximum torque at low speeds.

Why Part-Time 4WD Makes Sense for the Jimny

The Jimny's part-time system is actually brilliant for its intended purpose. When you're cruising on sealed roads, running in 2H saves fuel and reduces wear on the drivetrain. But when the going gets rough, you can quickly engage 4H for better traction without stopping the vehicle.

This approach keeps the system simple, reliable, and relatively light - three things that matter enormously in a compact off-roader. The fewer complex bits you have spinning around, the less there is to break when you're 200 kilometres from the nearest town.

[tip title="Know Your Modes" text="Get familiar with your transfer case lever positions before you hit the trails. Practice shifting between 2H and 4H on flat ground so you're not fumbling around when it matters."]

How Does the Transfer Case Work in Practice

The heart of the ALLGRIP Pro system is the transfer case, and it's simpler than you might think. Inside this mechanical box, you've got a set of gears and engagement mechanisms that can connect or disconnect the front driveshaft from the rear one, though the exact mechanical arrangement involves more sophisticated gear sets than a simple clutch mechanism.

When you shift into 4H, the transfer case mechanically locks the front and rear driveshafts together. This means both axles turn at exactly the same speed - brilliant for traction, but it creates problems on surfaces with good grip because the front and rear wheels want to turn at different speeds when cornering.

[product-feature="hardrace-transfer-box-skid-plate-2018-jimny"]

Understanding the Low Range Advantage

The 4L mode is where things get really interesting. The gear reduction in the transfer case multiplies your engine's torque, giving you incredible pulling power at low speeds. It's like having an extra-low first gear that works in all your gears.

This gear reduction is crucial for serious off-road work. Where you might need to rev the engine hard in 4H to climb a steep incline, 4L lets you crawl up at idle speed with massive torque available. It's also much easier on your clutch and engine when you're doing technical rock work or dragging someone out of trouble.

[quotation="The beauty of the Jimny's 4x4 system is its simplicity. When you're out in the bush and something goes wrong, you want mechanical systems you can understand and fix, not a computer that needs a diagnostic scanner." author="Nicholas Duarte"]

What Are the Real-World Strengths of the Jimny 4x4 System

Here's where the Jimny really shines - its compact size and light weight make it incredibly capable on challenging terrain. The combination of short overhangs, decent ground clearance, and proper 4WD means it can go places that surprise much bigger vehicles.

The lightweight factor can't be overstated. At around 1,090kg, the Jimny puts far less pressure on soft surfaces than heavier 4WDs. This means it floats over sand and mud where bigger vehicles might sink, and it's much less likely to damage delicate tracks.

Where the System Excels Most

• Rocky terrain where manoeuvrability matters more than pure power

• Narrow bush tracks that would challenge wider vehicles

• Sand driving where light weight prevents bogging

• Technical climbs where precise wheel placement is crucial

• Recovery situations where you need maximum traction at low speeds

[tip title="Use Your Weight Advantage" text="Don't try to muscle through obstacles like the big boys do. Instead, use your light weight and nimble handling to find the smart line around or over problems."]

The short wheelbase that some criticise for highway stability actually becomes a massive advantage off-road. You can pivot around tight switchbacks and navigate between trees that would stop longer vehicles dead. It's like the difference between riding a mountain bike and pushing a shopping trolley through a forest.

What Are the System Limitations You Should Know About

Let's be honest - no 4WD system is perfect, and the Jimny's ALLGRIP Pro has some limitations you should understand. The most significant is the lack of differential locks, which means you're relying on the brake-based traction control system when one wheel starts spinning freely.

The traction control does a decent job of mimicking a limited-slip differential by applying brakes to spinning wheels, but it's not as immediate or effective as a proper diff lock. In situations where you've got one wheel completely off the ground, progress can be slower than you'd like.

[collection-carousel="lift-kits"]

Managing the Short Wheelbase Trade-offs

That short wheelbase that's so handy for tight tracks can make the Jimny feel a bit lively on steep side slopes or when traversing uneven ground. The high centre of gravity relative to the track width means you need to be more careful about wheel placement and approach angles.

This isn't a major limitation, but it does require a different driving style compared to longer, wider vehicles. Think smooth inputs rather than aggressive moves, and always be conscious of your vehicle's attitude on steep terrain.

• Plan your line carefully on side slopes

• Use momentum wisely rather than relying on brute force

• Keep cargo weight as low as possible to maintain stability

• Consider lift kits and wider tyres for improved stability if you're doing serious off-road work

[tip title="Stability First" text="If you feel the vehicle starting to lean too much on a side slope, don't push it. Back out and find a different line - no photo opportunity is worth a rolled vehicle."]

How Should You Use Each Mode for Best Results

Getting the most from your ALLGRIP Pro system means understanding when and how to use each mode. It's not just about flicking a lever - there's proper technique involved that'll keep you moving and protect your drivetrain.

Start every off-road session in 2H and only engage 4WD when you actually need it. This saves fuel, reduces wear on the front drivetrain components, and prevents the binding that occurs when 4H is used on high-traction surfaces. Many new Jimny owners make the mistake of engaging 4H "just in case" and then wonder why their tyres are wearing unevenly.

[collection-carousel="suspension-1"]

When to Switch Between Modes

The transition from 2H to 4H can usually be done while moving, though the exact speed limits aren't clearly documented - it's smoother if you briefly lift off the throttle during the shift. Going from 4H to 4L requires you to stop completely, put the transmission in neutral, and then shift the transfer case.

Remember that 4L isn't just for extreme situations - it's also brilliant for any time you need precise, low-speed control. Backing a trailer into a tight spot, navigating a crowded campground, or just crawling through technical terrain where you want maximum control.

[product-feature="arb-old-man-emu-40mm-lift-kit-2018-jimny"]

What Modifications Can Enhance the System

While the ALLGRIP Pro system is pretty capable straight from the factory, there are modifications that can address some of its limitations and enhance its performance for serious off-road use.

Suspension lift kits are popular among Jimny owners, improving ground clearance and allowing for larger tyres. This doesn't change how the 4WD system works, but it does improve your approach and departure angles, and bigger tyres with more aggressive tread patterns provide better traction in challenging conditions.

Addressing the Differential Lock Absence

Some aftermarket companies offer differential lock conversions for the Jimny, though these are relatively expensive and complex modifications. A more cost-effective approach is to focus on tyres and driving technique - good quality all-terrain tyres with the right pressure settings can make an enormous difference to traction.

• Quality all-terrain or mud-terrain tyres for better grip

• Suspension lift kits for improved clearance and articulation

• Underbody protection to shield vulnerable components

• Snorkel systems for water crossing confidence

• Diff breathers for extended water crossing capability

[collection-carousel="recovery-protection"]

Don't overlook protection modifications either. Bash plates for the transfer case, differentials, and fuel tank are wise investments if you're planning to use your Jimny seriously off-road. The transfer case sits relatively low and can be vulnerable to rock strikes on technical terrain.

[tip title="Tyre Pressure Matters" text="Learn to adjust your tyre pressures for different terrain. Lower pressures increase your tyre's footprint and improve traction, but don't go too low or you'll risk damaging the sidewalls."]

What the Research Says About Jimny 4x4 Performance

When you cut through the marketing fluff and look at what automotive engineers and off-road testing actually reveals, the Jimny's ALLGRIP Pro system shows some interesting characteristics:

• Official testing confirms that the brake-based traction control system effectively redistributes torque to wheels with grip, though it's not as instantaneous as mechanical differential locks

• The part-time 4WD design proves more reliable in long-term use than complex full-time systems, with fewer electronic components to fail in harsh conditions

• Weight distribution analysis shows the 1,090kg kerb weight provides optimal ground pressure for sand and soft terrain navigation

• However, experts note that the lack of mechanical diff locks means performance can vary significantly depending on terrain type and driver technique

• Independent testing suggests that while the system works well for most recreational off-roading, serious rock crawling may benefit from aftermarket differential modifications

What Should You Do Next to Master Your Jimny 4x4 System

The best way to understand your ALLGRIP Pro system is to get out and use it, but start with easier terrain and work your way up. Find a local 4WD club or training course where you can practice in a safe environment with experienced guidance.

Spend time learning how your particular Jimny responds in different situations. Every vehicle has its own personality, and understanding your Jimny's quirks and capabilities will make you a much more confident and capable off-road driver.

Consider joining online communities where Jimny owners share experiences and modifications. The knowledge sharing in these groups can save you time, money, and potentially embarrassing situations when you're learning the ropes.

[collection-carousel="performance"]

Most importantly, always carry recovery gear and know how to use it. Even the most capable 4WD system can't defy physics, and having proper recovery equipment and the knowledge to use it safely can turn a potential disaster into just another adventure story.

Ready to take your Jimny's capabilities to the next level? Our range of carefully selected upgrades and accessories can help you build the perfect setup for your adventures, whether you're planning weekend camping trips or serious outback exploration.

[tip title="Practice Makes Perfect" text="Set up some practice obstacles in a safe area where you can experiment with different approaches and techniques. Learning your Jimny's limits in a controlled environment is much better than discovering them when you're stuck."]
